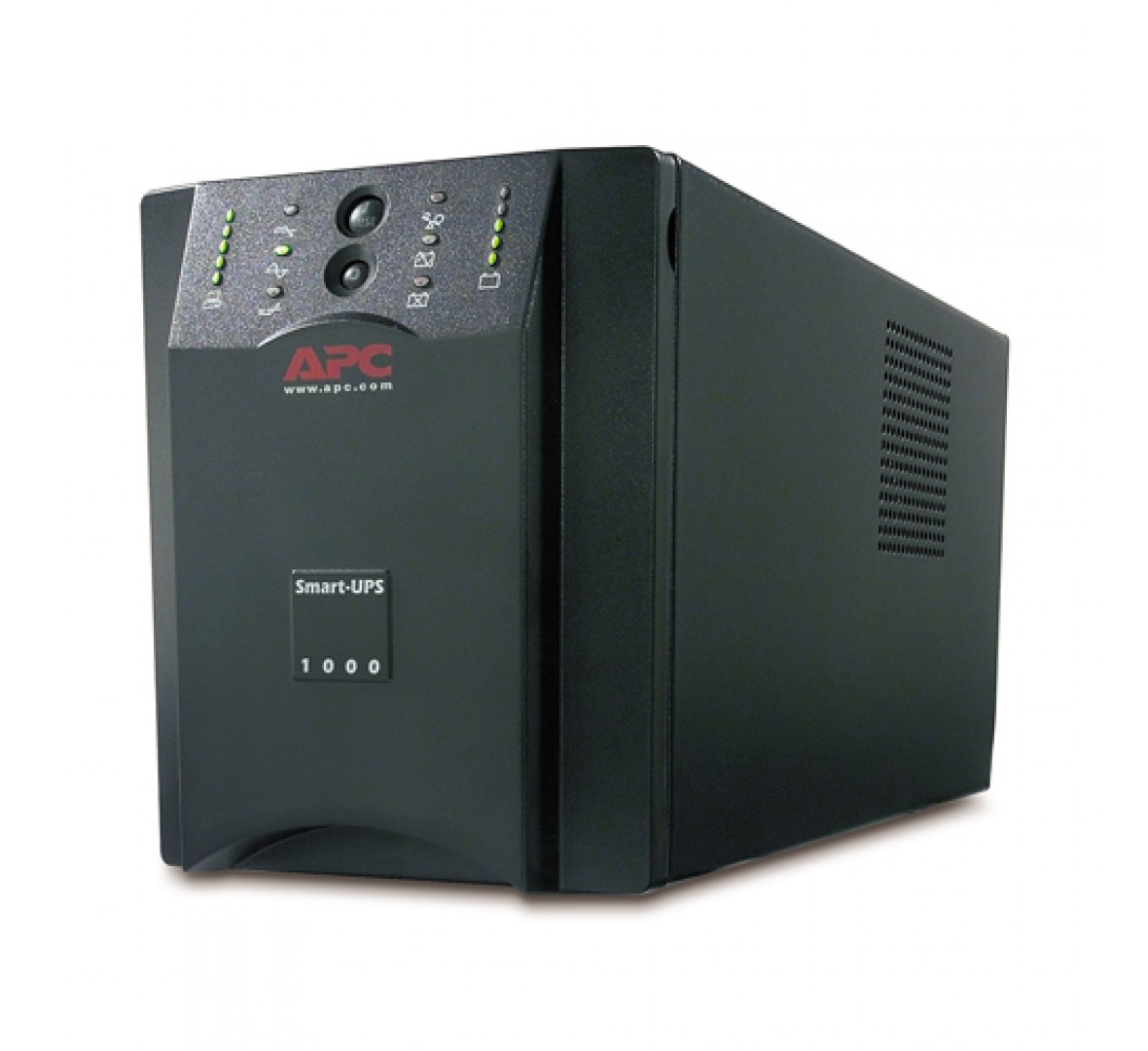

APC SMART-UPS SUA1000I-IN UPS 1000VA

APC SMART-UPS SUA1000I-IN UPS 1000VA

  • Entry level servers, Networking equipment, POS equipment
  • Waveform: Sine wave
  • Topology: Line Interactive
  • Warranty: 2 years

Item(s) Out of Stock at pincode:560001 Change

Sold by : MTS Systems

5.0

1-3 business days
Authorized Seller
APC
Delivery Charge: Free
OR Submit Enquiry
Sold by : MTS Systems

5.0

1-3 business days
Authorized Seller
APC

Why Us?

Specifications

Product Specifications

Brand APC
Phase Type 1-Phase Input 1-Phase Output
Topology Line Interactive
Inverter Capacity (VA) 1000
Capacity (W) 670
Waveform type Sine wave
Battery (Internal/External) Internal
Battery Capacity RBC 6 (12 AH)
System Voltage (DC) 24V
Recommended Applications Entry level servers, Routers, Switches, Hubs and other network devices
Highlighted Features
  • Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation.
  • Reliable battery back-up capacity to power through outages or gracefully shutdown systems
  • Achieves efficiencies over 97% smart-ups was the first network UPS to be Energy star certified
  • Powerchute business edition software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilites
  • Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies.

Features

UPS-Inverter switch Not Applicable
Home or Away switch Not Applicable
Variable voltage sensitivity setting Yes
Automatic Voltage Regulation (AVR) Yes
Full-time EMI/RFI suppression
Frequency Regulation Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets
Hot swap battery Yes
Extendable battery back-up
Intelligent battery charging Yes
Automatic battery self-test Yes
Selectable charging current Not Applicable
Generator compatibility
Cold start capability Yes
Audible Alarms Yes
Bypass feature
LED status indicators Yes
LCD Display
Power Management software Yes
Computer interface Yes

Technical Specifications

Input

Nominal Voltage/Frequency

230 Vac/47-53Hz

Input Voltage range for Mains Operations

160 - 285Vac

Input Voltage adjustable range for Mains Operations

151 - 302Vac

Voltage sensitivity for transfer to battery power

Low sensitivity

Medium sensitivity

High sensitivity

3 settings






Output

Waveform

 Sine wave

Nominal Voltage

230Vac

Output Voltage Distortion

 Less than 5% on full load

Output Frequency (sync to Mains)

47 - 53 Hz

Power Factor

0.8

Efficiency



Transfer time






Battery/Battery charger

Internal/External

Internal

Nominal Voltage

24V

Battery capacity (C20)

12Ah

Battery type

SMF lead acid (RBC6)

Typical recharge time

3 hours

Option to connect additional batteries

No

Safety/Protection

Outlets (Battery back-up + Surge protection)

8 outlets

Utility Input

User resettable circuit breaker

Warranty Details

Inverter/UPS Warranty 24 Months
Battery Warranty 12 Months
Warranty Type On-site warranty by Manufacturer

Miscellaneous

Computer interface details

Computer interface details

DB-9 RS 232, Smartslot, USB

Software connectivity

Software connectivity

Powerchute Business editor

Physical Characteristics

Dimension (W*H*D)cm

17 * 43.9 * 21.6

Net Weight (Kgs)

18.86kg

Environmental Characteristics

Operating Temperature

0 - 40 deg C

Relative Humidity

0-95%, non-condensing

Audible Noise

41dBA

Runtime

Estimated Runtime

Wattage(W)

Runtime

50

183

100

100

200

45

300

25

400

15

500

10

600

7
