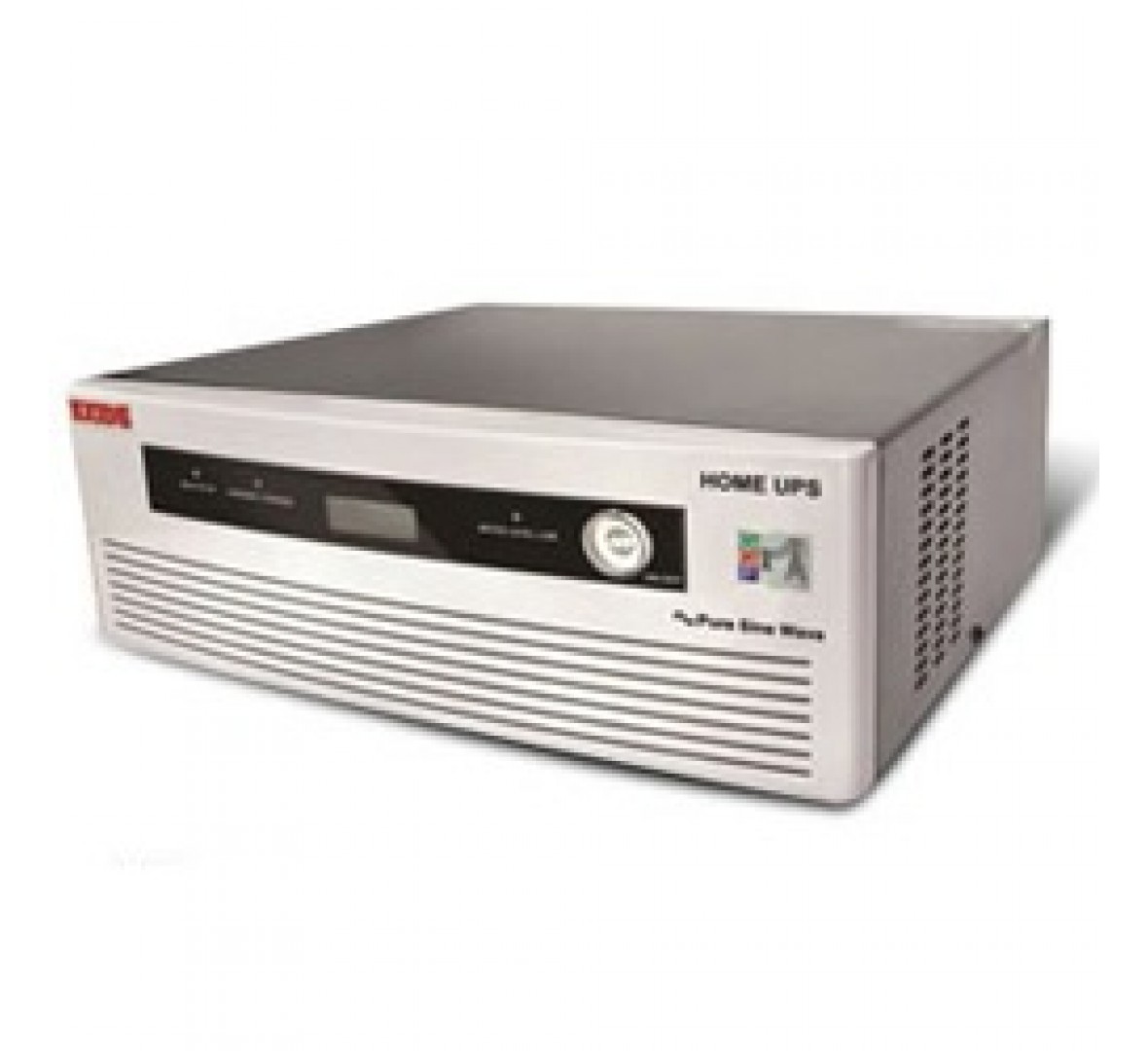

Exide Pure Sine wave home UPS 850VA

EXIDE PURE SINE WAVE HOME UPS 850VA

  • Loads: Lights, Fans, TV, PC
  • Sine wave
  • Requires 1 battery
  • Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free
OR Submit Enquiry
Sold by : UTI Ltd
Authorized Seller
Exide

Why Us?

Specifications

Product Specifications

Brand Exide
Phase Type 1-Phase Input 1-Phase Output
Topology Offline/Standby
Inverter Capacity (VA) 850
Capacity (W) 680
Waveform type Sine wave
Battery (Internal/External) External
Battery Capacity 1 no. (100 AH - 180 AH)
System Voltage (DC) 12V
Recommended Applications Lights, Fans, TV, PC etc
Highlighted Features

Features

UPS-Inverter switch Yes
Home or Away switch Yes
Variable voltage sensitivity setting Not Applicable
Automatic Voltage Regulation (AVR) Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets Not Applicable
Hot swap battery
Extendable battery back-up Yes
Intelligent battery charging Yes
Automatic battery self-test
Selectable charging current Yes
Generator compatibility
Cold start capability
Audible Alarms Yes
Bypass feature Manual
LED status indicators
LCD Display Yes
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation

INVERTER Mode (For Lights & Fans)

UPS Mode (For sensitive electronics)

Input voltage/frequency

230V AC/ 50 Hz

Voltage window for "on mains" operation

In INVERTER mode: 100-280 Vac(+/-5V)

In UPS mode: 180-260Vac(+/-5V)

Maximum input voltage without damage

285 Vac

Output

Waveform

Sine wave

Output voltage

On Mains:

  • In INVERTER mode: 100-280Vac (mains voltage is passed to load)
  • In UPS mode: 180-260Vac (mains voltage is passed to load)

On Battery:

  • 220Vac(+/-7V) (at No load)

Output frequency

On Mains: Auto detect

On Battery: 50Hz +/-1Hz

Battery/Battery charger

Internal/External

External

Nominal voltage

12V

Battery capacity (C20)

1 N0. (100 AH - 180 AH)

Battery type

Flooded batteries (Flat plate/Tubular)

Charger type

ASIC technology

Charging current

Selectable: 8A, 11A (depending upon battery capacity)

Typical recharge time



Safety/Protection

Protection provided against



Overload on Mains

Overload on battery

Short circuit

Low battery voltage







Warranty Details

Inverter/UPS Warranty 24 Months
Battery Warranty Depends on battery Manufacturer
Warranty Type On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (D*W*H) cm

Not Specified

Net Weight (Kg)

Not Specified

Environmental Characteristics

Operating temperature

0 - 45 deg C

Humidity

0-95%, non-condensing
