Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions
  • Educational Institutions
    • Schools
    • Universities
  • Health Institutions
    • Hospitals
    • Medical College
Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★
31/2 Years to 41/2 Years

Return on Investment

20% to 25%
Contact us

leave details below

loader

X

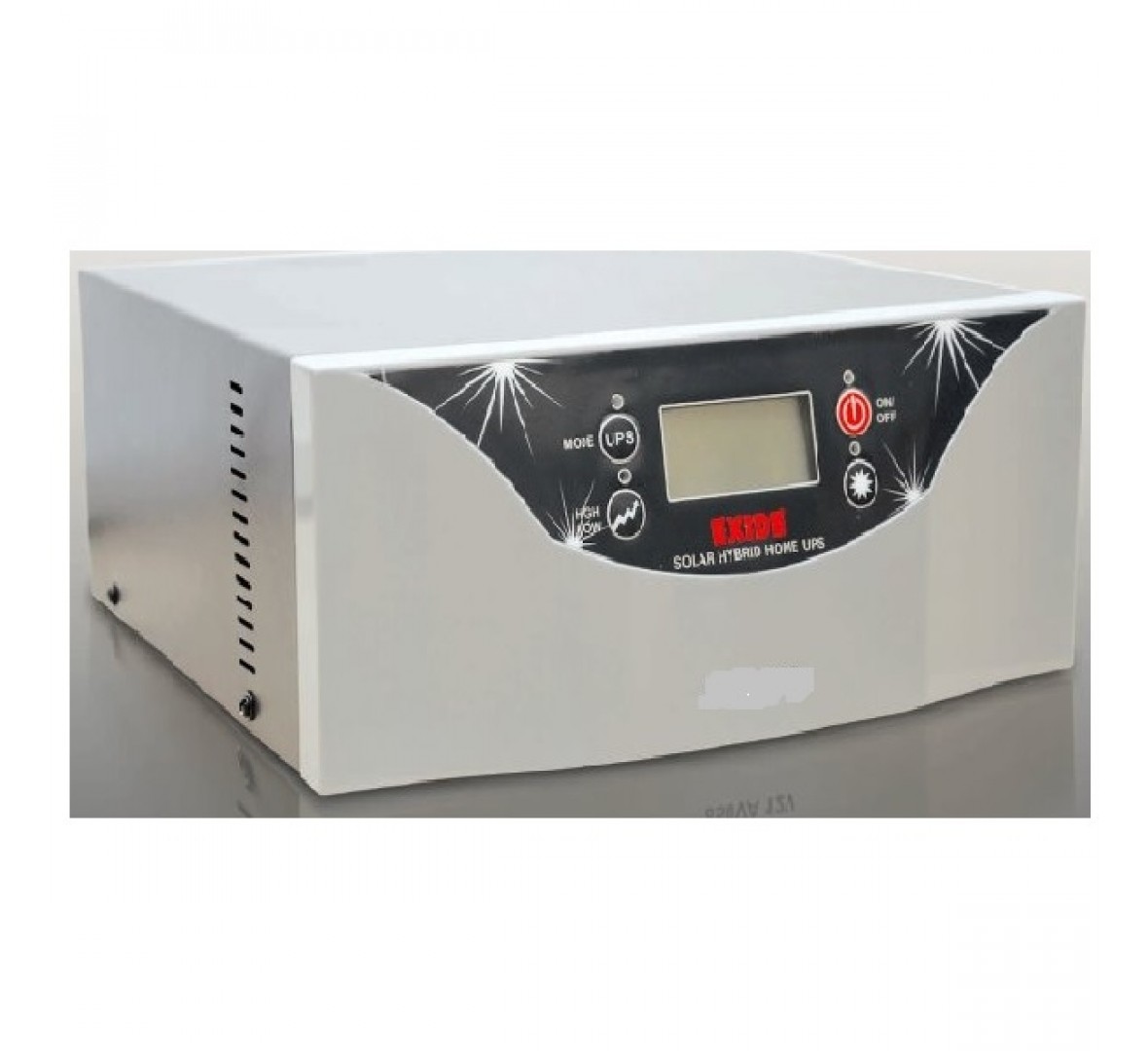

EXIDE SOLAR HYBRID UPS SHP 650VA

EXIDE SOLAR HYBRID UPS SHP 650VA

  • Loads: Lights, Fans, TV, PC,
  • Sine wave
  • Requires 1 battery
  • Warranty: 2 years

Delivery available at 560001 Change

Sold by : UTI Ltd
3-5 business days
Authorized Seller
Exide
View Other Sellers ( 1 )
Delivery Charge: Free
Best Offer at your location

Price

Rs 5,399

Rs 9,499

 (44% off)
Delivery Charge: Free
Sold by : UTI Ltd
3-5 business days
Authorized Seller
Exide
View Other Sellers ( 1 )

Why Us?

Be Future Ready: BUY A SOLAR POWER SYSTEM

Save Money + Get Back-up Power

Recommended Solar Kit

Best Price

(incl. delivery, installation & taxes)

₹ 31,704/-

Complete System

EMI Starts from

₹ 2,832p/m

₹ 18,456/-

Inverter + Battery + Rack Only

EMI Starts from

₹ 1,648p/m

Benefits of Going Solar (Estimates only)

Solar Inverter

EXIDE SOLAR HYBRID UPS SHP 650VA

Capacity: 650VA

Warranty: 24 Months

Specifications

Solar Panels

EXIDE SP12EXIDE150 150W/36-CELL/POLYCRYSTALLINE SOLAR PANEL

Quantity: 1

Brand: Exide

Warranty: 10 years

Total Capacity: 150W

Specifications

Solar Batteries

EXIDE SOLAR 6LMS120L 120AH BATTERY

Capacity: 120AH

Quantity: 1 Battery

Warranty: 60 Months

Specifications

Electrical & Mechanical Hardware Electrical & Mechanical Hardware including Mounting structure – Hot dip galvanized iron structure with stainless steel hardware & civil foundation (concrete blocks) / Aluminium structure (with concrete blocks) as suitable AC & DC cables interconnecting solar panels, inverters & batteries Solar Array to Inverter: (Included 10m: Extra length chargeable) Electrical DB to Inverter: (Included 5m: Extra length chargeable) Electrical fuses & other safety protections as applicable Miscellaneous hardware as applicable

Included

  • Long-life
  • Quality Assured

Shadow-free roof area required

~ 12 sqft (1.2 sqm)

Best Price

(incl. delivery, installation & taxes)

₹ 31,704/-

For Complete System

Workmanship warranty: 1yr

EMI Starts from

₹ 2,832p/m

₹ 18,456/-

For Inverter + Battery + Rack Only

EMI Starts from

₹ 1,648p/m

Benefits of Going Solar (Estimates only)

Solar Energy Generated

17

units/mth

Power back-up to Connected Loads available for

2.6 - 6.9

hrs/day

Payback against regular Inverter/Battery System

2.8

yrs

Contribution to Environment in 25yrs

Your solar system will reduce…

5TONSCO2

Equivalent to

Planting trees

0.2ACRES

Shadow-free roof area required

~ 12 sqft (1.2 sqm)

Loads that can be run on solar power

  • Lights
  • Fans
  • TV
  • Computers/Laptops

Specifications

Product Specifications

Brand Exide
Power Output AC
Phase Type 1-Phase Input 1-Phase Output
Topology Offline/Standby
Inverter Capacity (VA) 650
Capacity (W) 520
Max. Input Voltage (V) 25
Waveform type Sine wave
Battery (Internal/External) External
Battery Capacity 1 No (100 AH - 200 AH)
System Voltage (DC) 12V
Recommended Applications Sensitive electronics (Home theatre, audio system etc.), TV, PC, Lights & Fans

Solar Specifications

Minimum Solar Capacity (Wp) 125
Maximum Solar Capacity (Wp) 900
Charge Controller Rating (A) 50
Charge Controller Type PWM
Grid Charging Parameters

 Parameter

 Feature

 Grid Charging Current

Grid charging can be enabled/disabled from the Switch

 Fast Charging

 Yes, User selectable

Other Features

 Feature

 Yes/No

 Inverter Mode (for lights & fans) / UPS Mode (for sensitive equipments)

 Yes

 User settable Priority (Solar/Mains/Battery OR Solar/Battery/Mains)

 Yes

 LCD Display

 Yes

App for Remote Monitoring/Management

No

Features

UPS-Inverter switch Yes
Home or Away switch Not Applicable
Variable voltage sensitivity setting Not Applicable
Automatic Voltage Regulation (AVR) Not Applicable
Full-time EMI/RFI suppression Not Applicable
Frequency Regulation Not Applicable
Data line surge protection Not Applicable
Separate battery-protected and surge-only outlets Not Applicable
Hot swap battery Not applicable
Extendable battery back-up Yes
Intelligent battery charging Yes
Automatic battery self-test
Selectable charging current Yes
Generator compatibility
Cold start capability
Audible Alarms Yes
Bypass feature Automatic
LED status indicators
LCD Display Yes
Power Management software Not Applicable
Computer interface Not Applicable

Technical Specifications

Input

Modes of operation

Inverter Mode (For Lights & Fans)

UPS Mode (For sensitive electronics)

Input voltage/frequency

230V AC/ 50 Hz

Voltage window for "on mains" operation

180-260Vac

100-280Vac

Maximum input voltage without damage

280 Vac

Output

Waveform

Sine wave

Output voltage

On Mains:

  • Regulated mode : 180-260Vac(mains voltage is passed to load)
  • Unregulated mode : 100-280Vac

On Battery:

  • 230Vac (depending on load)

Output frequency

On Mains: 50Hz (Auto-detect)

On Battery: 50Hz +/-2Hz

Battery/Battery charger

Internal/External

External

Nominal voltage

12V

Battery capacity (C20)

120Ah - 150Ah

Battery type

 Tubular, Flat Plate, SMF (VRLA)

Charger type

 PWM

Charging current

 50A

Typical recharge time

 10-12 hours

Safety/Protection
  • Deep Discharge Protection
  • Overcharge Protection
  • Short Circuit Protection
  • Battery Type selection

Warranty Details

Inverter/UPS Warranty 24 Months
Battery Warranty Depends on battery Manufacturer
Warranty Type On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (D*W*H) cm

 20cm*21cm*10cm

Net Weight (Kg)

 14kg

Environmental Characteristics

Operating temperature

0 - 40 deg C

Humidity

0-95%, non-condensing
