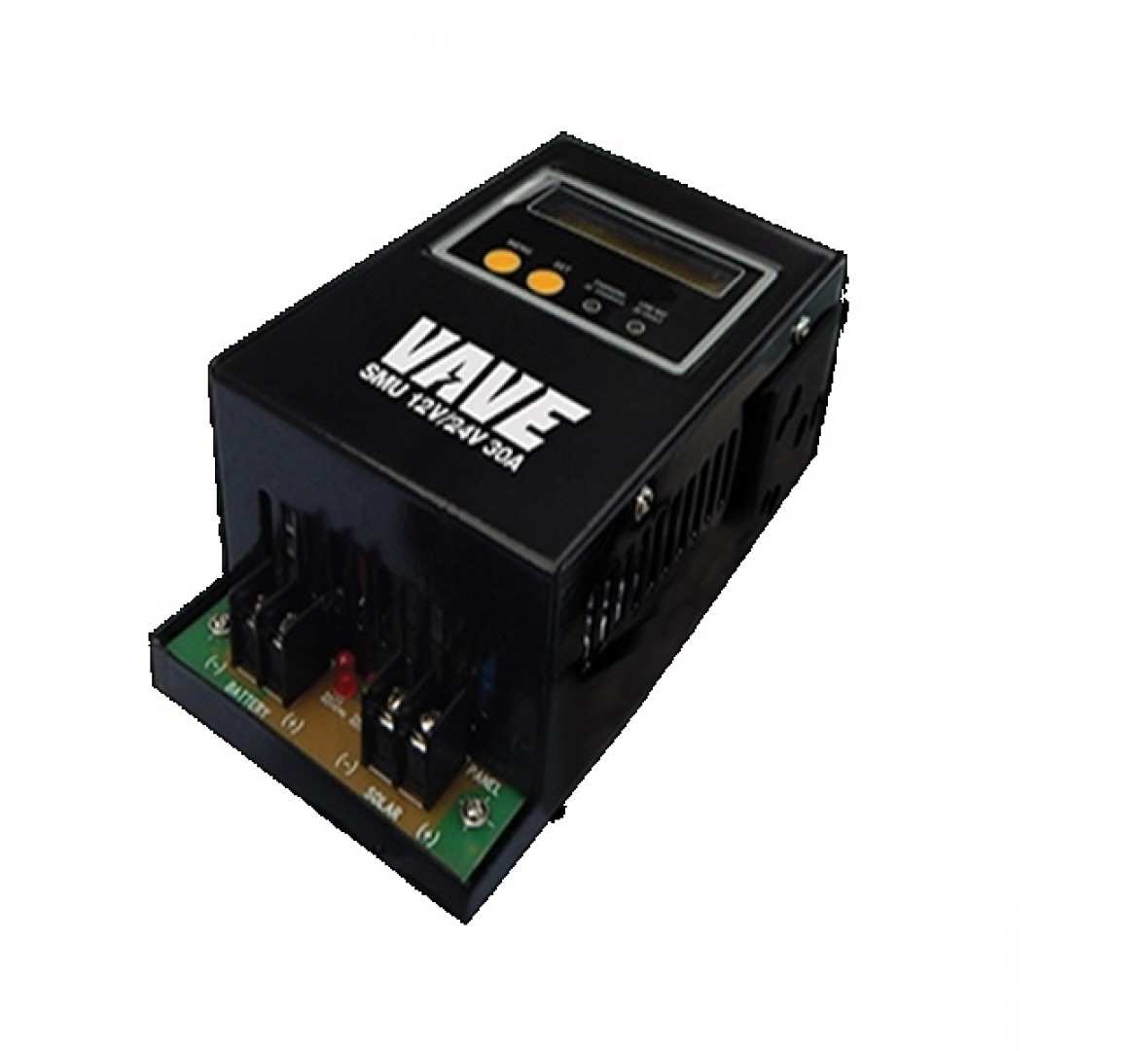

LIVGUARD VAVE SMU 12/24V-30 SOLAR RETROFIT CONTROLLER

LIVGUARD SOLAR RETROFIT VAVE SMU 12/24V, 30A CHARGE CONTROLLER

  • Converts normal UPS to Solar UPS
  • Auto-detects 12V/24V
  • Max. Solar Capacity: 500W(12V) / 1000W (24V)
  • Compatible with < 2000VA inverters

Item(s) not available at pincode:560001 Change

Delivery Charge: Free
OR Submit Enquiry

Quick links

Specifications Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Applications
  • Enables normal UPS to utilize solar power to charge existing Battery Bank
  • Compatible with both 12V inverters (with one battery) & 24V inverters (with two batteries) - Any Brand
  • Reduces the monthly electricity bill as the controller controls the mains supply to the inverter such that
    • Solar power consumption is prioritized
    • Grid power is only used when enough solar power is not available
Features
  • 3 Operation modes: Auto / Manual / 100% Solar
  • 3 Stage battery charging ensures longer battery life
  • LCD Display: Displays information like battery charging status, charging source, total units savings etc.
Brand Livguard
Charge controller (Voltage) 12V / 24V
Maximum Solar Capacity (Wp) 500W(12V) / 1000W(24V)
Charge Controller Rating (A) 30
Charge Controller Type PWM

Warranty Details

Warranty 12 months

Technical Specifications

Charge Controller Specifications



Max. O/P Current

30A

Nominal O/P Voltage

12V/24V (Auto-detect)

Batt. High cut.off



Efficiency

> 96%

Max. Panel Open Circuit Voltage

24V/48V

Dimensions L*W*H (mm)



Weight





Safety/Protection



Reverse Battery Protection

Yes

Reverse PV Protection

Yes

Reverse Current from Batt. to PV

Yes

Over PV Current Protection

Yes

Batt. High Voltage Protection

Yes

Over Temp. Protection

Yes

Restart after any Protection

Every 1 min

Wire gauge for Batt. & PV Input

6 Sq.mm.

Wire gauge for input Grid & UPS/Inv

6 Sq.mm.
