Harayana

Maharastra

Telangana

Andhra Pradesh

Karnataka

Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions

Educational Institutions
- Schools
- Universities
Health Institutions
- Hospitals
- Medical College

Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★

3¹/₂ Years to 4¹/₂ Years

Return on Investment

20% to 25%

Contact us

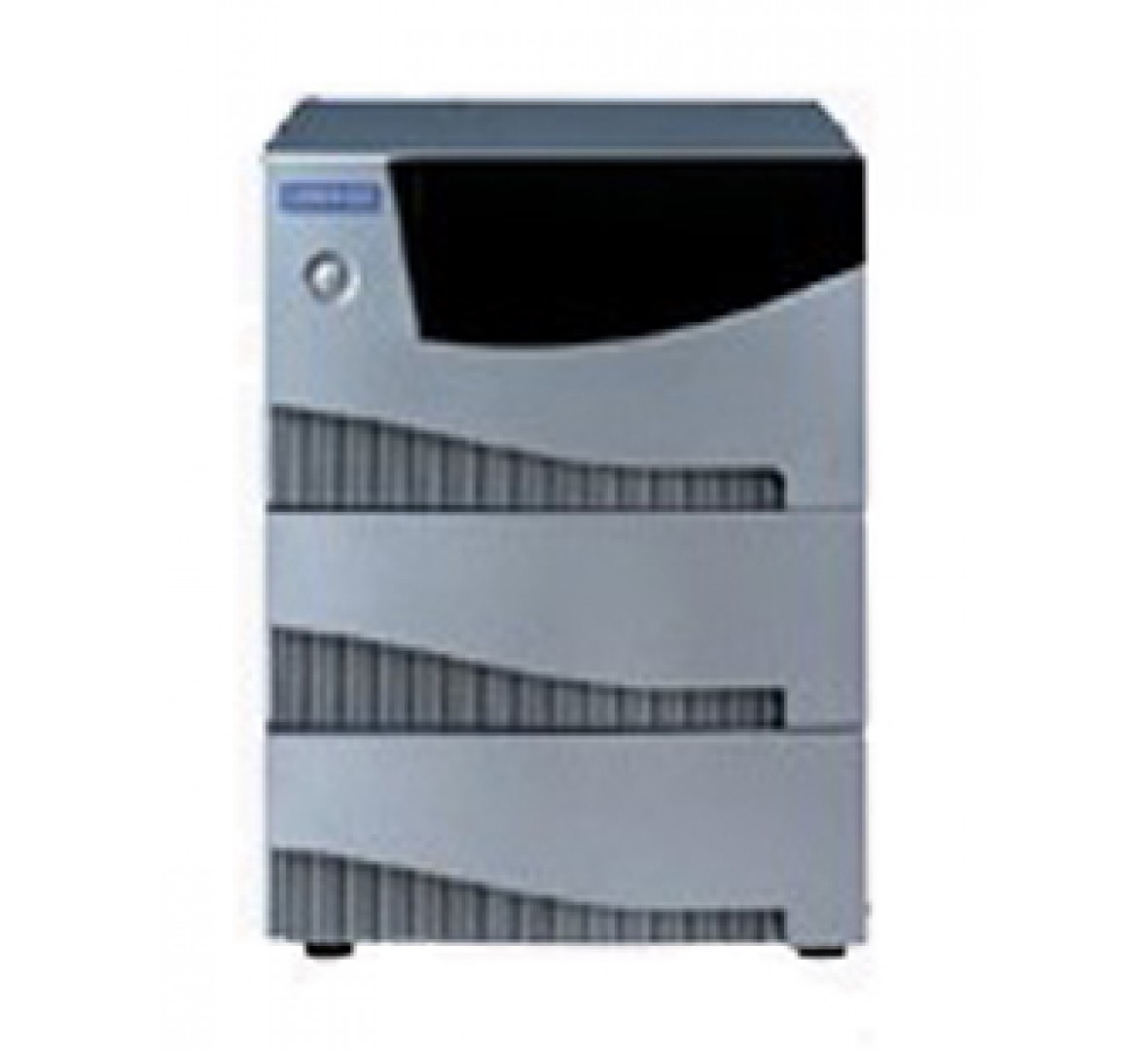

LUMINOUS CRUZE SINE WAVE UPS 5.5KVA (96V)

1 Reviews

|Add to Compare

Also: Pumps, Refrigerators, AC
Sine wave
Requires 8 batteries
Warranty: 2 years

Delivery available at 560001 Change

Sold by : TT Solutions

0 Reviews

1-3 business days

Authorized Seller

Delivery Charge: Free

Best Offer at your location

Price

Rs 36,629

Rs 51,990

(30% off)

EMI Starts from

₹ 3,272p/m

EMI Details

Select Bank

Emi Details For HDFC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 12,475	Rs 37,425
6 Months	13%	Rs 6,338	Rs 38,028
9 Months	14%	Rs 4,311	Rs 38,799
12 Months	14%	Rs 3,289	Rs 39,468

Emi Details For ICICI

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 12,475	Rs 37,425
6 Months	13%	Rs 6,338	Rs 38,028
9 Months	13%	Rs 4,294	Rs 38,646
12 Months	13%	Rs 3,272	Rs 39,264

Emi Details For Axis

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 12,455	Rs 37,365
6 Months	12%	Rs 6,320	Rs 37,920
9 Months	13%	Rs 4,294	Rs 38,646
12 Months	13%	Rs 3,272	Rs 39,264

Emi Details For Kotak

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 12,455	Rs 37,365
6 Months	12%	Rs 6,320	Rs 37,920
9 Months	14%	Rs 4,311	Rs 38,799
12 Months	14%	Rs 3,289	Rs 39,468

Emi Details For IndusInd

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	14%	Rs 12,496	Rs 37,488
6 Months	14%	Rs 6,357	Rs 38,142
9 Months	14%	Rs 4,311	Rs 38,799
12 Months	14%	Rs 3,289	Rs 39,468

Emi Details For Ratnakar Bank

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 12,475	Rs 37,425
6 Months	13%	Rs 6,338	Rs 38,028
9 Months	13%	Rs 4,294	Rs 38,646
12 Months	13%	Rs 3,272	Rs 39,264

Emi Details For Standard Chartered

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 12,475	Rs 37,425
6 Months	13%	Rs 6,338	Rs 38,028
9 Months	14%	Rs 4,311	Rs 38,799
12 Months	14%	Rs 3,289	Rs 39,468

Emi Details For Central Bank of India

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 12,475	Rs 37,425
6 Months	13%	Rs 6,338	Rs 38,028
9 Months	14%	Rs 4,311	Rs 38,799
12 Months	14%	Rs 3,289	Rs 39,468

Emi Details For HSBC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12.5%	Rs 12,465	Rs 37,395
6 Months	12.5%	Rs 6,329	Rs 37,974
9 Months	13.5%	Rs 4,302	Rs 38,718
12 Months	13.5%	Rs 3,280	Rs 39,360

Emi Details For Citi

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 12,475	Rs 37,425
6 Months	13%	Rs 6,338	Rs 38,028
9 Months	15%	Rs 4,328	Rs 38,952
12 Months	15%	Rs 3,306	Rs 39,672

Emi Details For AMEX

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	15%	Rs 12,516	Rs 37,548
6 Months	15%	Rs 6,375	Rs 38,250
9 Months	15%	Rs 4,328	Rs 38,952
12 Months	15%	Rs 3,306	Rs 39,672

Table above shows minimum cart value to avail 3, 6, 9 & 12 months EMI.
Valid only on HDFC, ICICI, Axis, Kotak, IndusInd, SBI, Ratnakar Bank, Standard Chartered, Central Bank of India, HSBC, Citi and AMEX credit cards.
EMI not applicable for debit cards.
The bank charges annual interest rates (as shown above) according to the reducing monthly balance. In the monthly reducing cycle, the principal is reduced with every EMI and interest is calculated on the outstanding balance.

Includes : Installation
Excludes : AC-side wiring

Delivery Charge: Free

Quick links

Specifications Features Warranty Details

Sold by : TT Solutions

0 Reviews

1-3 business days

Authorized Seller

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Be Future Ready: BUY A SOLAR POWER SYSTEM

Save Money + Get Back-up Power

Benefits of Going Solar

Save upto 90% on Electricity Bill
Get (2-7) hrs/day Back-up power
3 – 5 yrs payback against Inverter / Battery System

Get your FREE SOLAR QUOTE NOW

Specifications

Product Specifications

Brand	Luminous
Phase Type	1-Phase Input 1-Phase Output
Topology	Offline/Standby
Inverter Capacity (VA)	5500
Capacity (W)	4400
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	8 Nos.(120 AH - 240 AH)
System Voltage (DC)	96V
Recommended Applications	Pumps, Refrigerators, AC etc
Highlighted Features

Features

UPS-Inverter switch	Yes
Home or Away switch	Yes
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation	Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current	Yes
Generator compatibility	Yes
Cold start capability	Yes
Audible Alarms	Yes
Bypass feature	Manual
LED status indicators	Yes
LCD Display
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation	INVERTER Mode (For Lights & Fans) UPS Mode (For sensitive electronics)
Input voltage/frequency	230V AC/ 47-53 Hz
Voltage window for "on mains" operation	In INVERTER mode: 100-285Vac(+/-10V) In UPS mode: 180-260Vac(+/-5V)
Maximum input voltage without damage	270Vac

Output

Waveform	Sinewave
Output voltage	On Mains: In INVERTER mode: 100-270Vac (mains voltage is passed to load) In UPS mode: 180-260Vac (mains voltage is passed to load) On Battery: 210-230Vac (depending on load)
Output frequency	On Mains: 45-55Hz (Mains frequency passed to load) On Battery: 50Hz +/- 2%Hz
Bypass	Manual bypass switch

Battery/Battery charger

Battery(Internal/External)	External
Nominal voltage	96V
Battery capacity (C20)	8 Nos. (120 AH - 240 AH)
Battery type	Flat Plate, Tubular
Charger type	Fuzzy Logic Control
Charging current
Typical recharge time	10-12 hrs

Safety/Protection

Protection provided against

Overload on Mains

Overload on battery

Short circuit

Low battery voltage

Over temperature

Warranty Details

Inverter/UPS Warranty	24 Months
Battery Warranty	Depends on battery Manufacturer
Warranty Type	On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (DWH) cm	280 * 365* 380
Net Weight (Kg)	44.5Kg

Environmental Characteristics

Operating temperature	0 - 40 deg C
Humidity	0-95%, non-condensing
