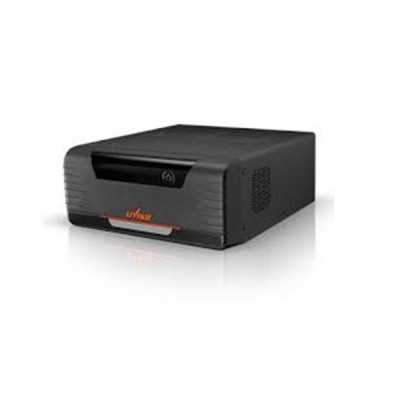

LUMINOUS SOLO 600VA

LUMINOUS SOLO 600VA

  • Suitable for: Personal Computer
  • Waveform: Modified sine wave
  • Topology: Line Interactive

Item(s) not available at pincode:560001 Change

Delivery Charge: Free
OR Submit Enquiry

Why Us?

Specifications

Product Specifications

Brand
Phase Type
Topology Line Interactive
Inverter Capacity (VA) 600
Capacity (W) 360
Waveform type Modified Sine wave
Battery (Internal/External) Internal
Battery Capacity 7.5Ah of 1 no
System Voltage (DC) 12V
Recommended Applications Personal Computer
Highlighted Features

Features

UPS-Inverter switch Not Applicable
Home or Away switch Not Applicable
Variable voltage sensitivity setting
Automatic Voltage Regulation (AVR) Yes
Full-time EMI/RFI suppression
Frequency Regulation Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets
Hot swap battery
Extendable battery back-up
Intelligent battery charging Yes
Automatic battery self-test
Selectable charging current Not Applicable
Generator compatibility Yes
Cold start capability
Audible Alarms Yes
Bypass feature
LED status indicators Yes
LCD Display
Power Management software Yes
Computer interface Yes

Technical Specifications

Input

Input Voltage/Frequency

230 Vac/50Hz



Voltage sensitivity for transfer to battery power



Single Setting







140Vac – 290Vac



Output

Waveform

Modified Sine wave

Nominal Voltage

230Vac

Voltage Regulation (Line mode)

220/230(+/-10%)

Voltage Regulation (Battery mode)

230Vac

Power Factor



Efficiency



Transfer time

3ms

Battery/Battery charger

Internal/External

Internal

Nominal Voltage

12V

Battery capacity (C20)

7.5Ah

Battery type

SMF

Typical recharge time

4 hours upto 90% capacity

Option to connect additional batteries

No

Safety/Protection

Warranty Details

Inverter/UPS Warranty
Battery Warranty
Warranty Type

Miscellaneous

Computer interface details

Computer interface details

DB-9

Software connectivity

Software connectivity

Information not available

Physical Characteristics

Dimension (W*H*D)

9.5 * 14 * 28

Net Weight (Kgs)

4.8Kg

Environmental Characteristics

Operating Temperature

0 – 40 deg C

Relative Humidity

0-95%, non-condensing

Audible Noise



Runtime

Estimated Runtime
