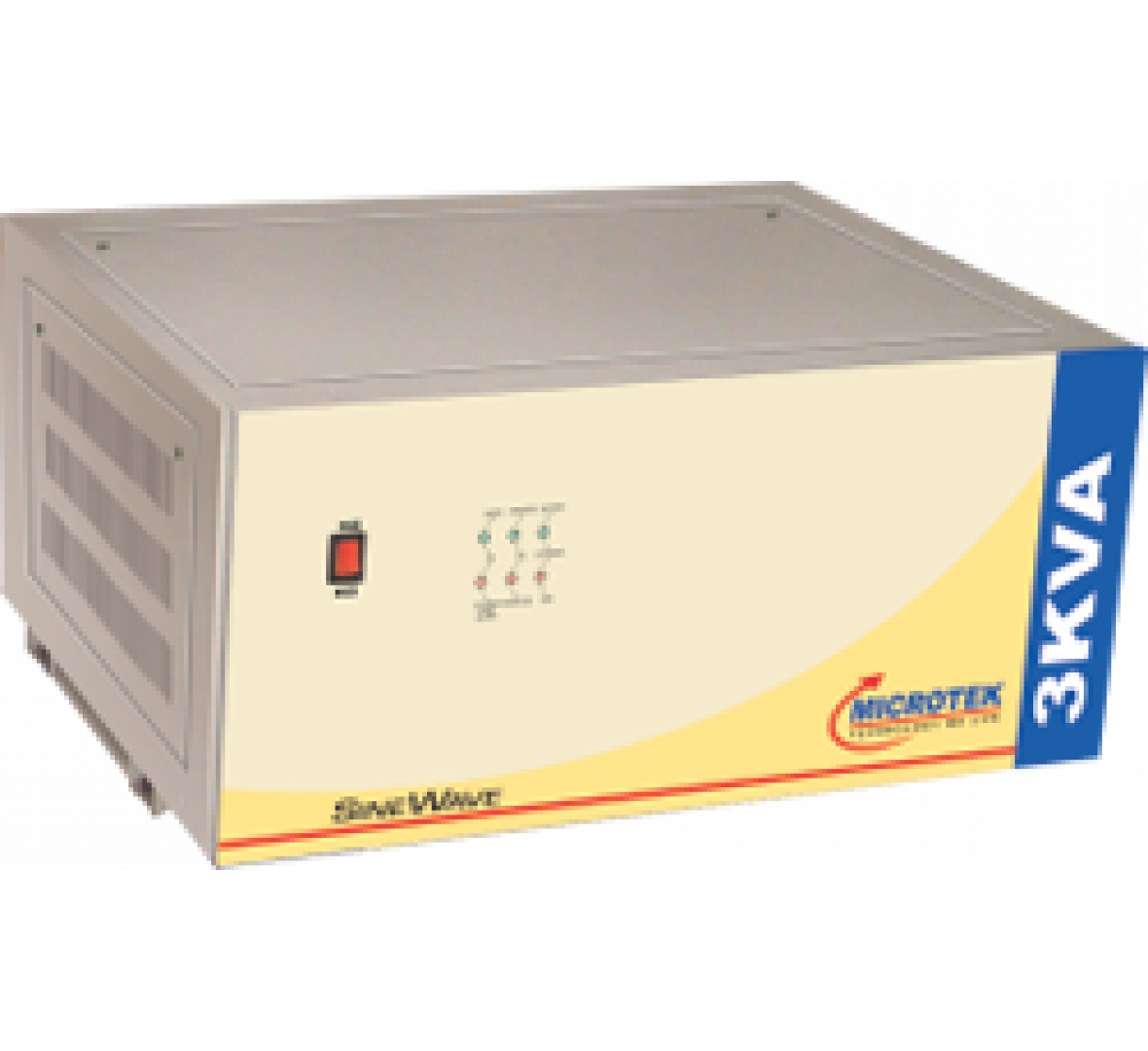

MICROTEK SOHO SINEWAVE INVERTER 3KVA

0 Reviews

|Add to Compare

Suitable for: Lights, Fans, TV, PC, Sensitive electronics
Waveform: Sine wave
Topology: Offline/Standby
Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Specifications Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Be Future Ready: BUY A SOLAR POWER SYSTEM

Save Money + Get Back-up Power

Benefits of Going Solar

Save upto 90% on Electricity Bill
Get (2-7) hrs/day Back-up power
3 – 5 yrs payback against Inverter / Battery System

Get your FREE SOLAR QUOTE NOW

Specifications

Product Specifications

Brand	Microtek
Phase Type
Topology	Offline/Standby
Inverter Capacity (VA)	3000
Capacity (W)	2400
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity
System Voltage (DC)	48V
Recommended Applications	Lights, Fans, TV, PC, Sensitive electronics
Highlighted Features

Features

UPS-Inverter switch
Home or Away switch	Yes
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation	Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current	Yes
Generator compatibility
Cold start capability
Audible Alarms
Bypass feature
LED status indicators	Yes
LCD Display
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation	Wide input voltage range
Input voltage/frequency	230V AC/ 50 Hz
Voltage window for "on mains" operation	Wide input voltage range : 110-310Vac
Maximum input voltage without damage	310 Vac

Output

Waveform

Modified Sine wave

Output voltage

On Mains:

Wide input voltage range : 110-310Vac

On Battery:

200-230Vac+/-10% (depending on load)

Output frequency

On Mains: 50Hz( Auto-detect)

On Battery: 50Hz +/-0.1Hz

Battery/Battery charger

Internal/External	External
Nominal voltage	48V
Battery capacity (C20)
Battery type	Lead Acid/SMF
Charger type	Constant current, Constant Wattage
Charging current	Settable,10A(+/-2A)
Typical recharge time
