Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions
  • Educational Institutions
    • Schools
    • Universities
  • Health Institutions
    • Hospitals
    • Medical College
Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★
31/2 Years to 41/2 Years

Return on Investment

20% to 25%
Contact us

leave details below

loader

X

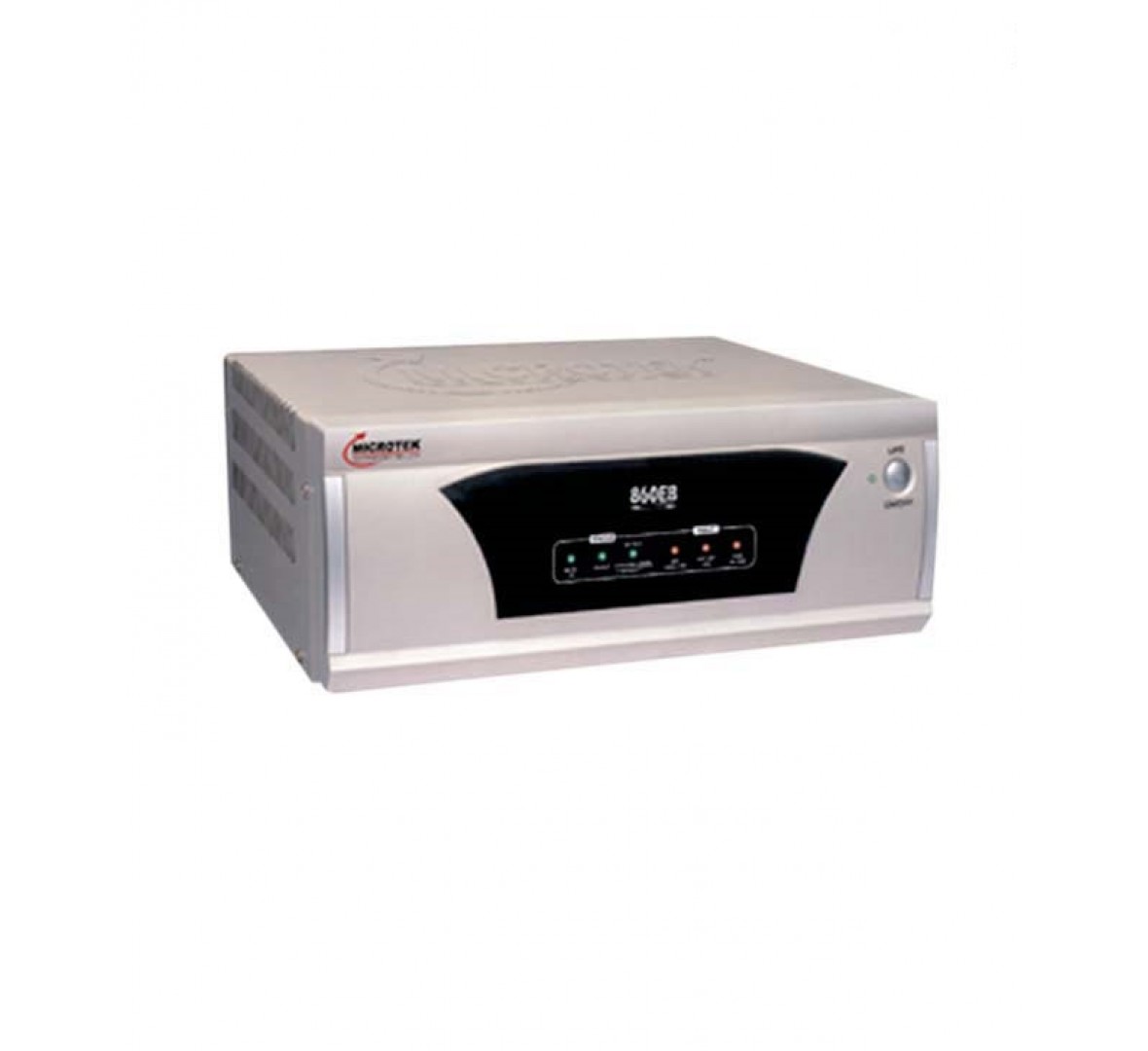

MICROTEK UPS EB 700VA

MICROTEK UPS EB 700VA

  • Loads: Lights, Fans, TV, PC
  • Modified Sinewave
  • Requires 1 battery
  • Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free
OR Submit Enquiry

Why Us?

Be Future Ready: BUY A SOLAR POWER SYSTEM

Save Money + Get Back-up Power

Recommended Solar Kit

Best Price

(incl. delivery, installation & taxes)

₹ 31,704/-

Complete System

EMI Starts from

₹ 2,832p/m

₹ 18,456/-

Inverter + Battery + Rack Only

EMI Starts from

₹ 1,648p/m

Benefits of Going Solar (Estimates only)

Solar Inverter

EXIDE SOLAR HYBRID UPS SHP 650VA

Capacity: 650VA

Warranty: 24 Months

Specifications

Solar Panels

EXIDE SP12EXIDE150 150W/36-CELL/POLYCRYSTALLINE SOLAR PANEL

Quantity: 1

Brand: Exide

Warranty: 10 years

Total Capacity: 150W

Specifications

Solar Batteries

EXIDE SOLAR 6LMS120L 120AH BATTERY

Capacity: 120AH

Quantity: 1 Battery

Warranty: 60 Months

Specifications

Electrical & Mechanical Hardware Electrical & Mechanical Hardware including Mounting structure – Hot dip galvanized iron structure with stainless steel hardware & civil foundation (concrete blocks) / Aluminium structure (with concrete blocks) as suitable AC & DC cables interconnecting solar panels, inverters & batteries Solar Array to Inverter: (Included 10m: Extra length chargeable) Electrical DB to Inverter: (Included 5m: Extra length chargeable) Electrical fuses & other safety protections as applicable Miscellaneous hardware as applicable

Included

  • Long-life
  • Quality Assured

Shadow-free roof area required

~ 12 sqft (1.2 sqm)

Best Price

(incl. delivery, installation & taxes)

₹ 31,704/-

For Complete System

Workmanship warranty: 1yr

EMI Starts from

₹ 2,832p/m

₹ 18,456/-

For Inverter + Battery + Rack Only

EMI Starts from

₹ 1,648p/m

Benefits of Going Solar (Estimates only)

Solar Energy Generated

17

units/mth

Power back-up to Connected Loads available for

2.6 - 6.9

hrs/day

Payback against regular Inverter/Battery System

2.8

yrs

Contribution to Environment in 25yrs

Your solar system will reduce…

5TONSCO2

Equivalent to

Planting trees

0.2ACRES

Shadow-free roof area required

~ 12 sqft (1.2 sqm)

Loads that can be run on solar power

  • Lights
  • Fans
  • TV
  • Computers/Laptops

Specifications

Product Specifications

Brand Microtek
Phase Type 1-Phase Input 1-Phase Output
Topology Offline/Standby
Inverter Capacity (VA) 700
Capacity (W) 560
Waveform type Modified Sine wave
Battery (Internal/External) External
Battery Capacity 1 Nos. (180 AH - 200AH)
System Voltage (DC) 12V
Recommended Applications Lights, Fans, TV, PC etc
Highlighted Features

Features

UPS-Inverter switch Yes
Home or Away switch
Variable voltage sensitivity setting Not Applicable
Automatic Voltage Regulation (AVR) Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets Not Applicable
Hot swap battery
Extendable battery back-up Yes
Intelligent battery charging Yes
Automatic battery self-test
Selectable charging current
Generator compatibility
Cold start capability
Audible Alarms
Bypass feature Manual
LED status indicators Yes
LCD Display
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation

Wide input voltage range

Normal Input voltage range

Input voltage/frequency

230V AC/ 50 Hz

Voltage window for "on mains" operation

Wide input voltage range : 100-300Vac

Normal Input voltage range : 180-260Vac

Maximum input voltage without damage

300 Vac

Output

Waveform

Modified Sine wave

Output voltage

On Mains:

  • Wide input voltage range: 100-300Vac
  • Normal Input voltage range : 180-260Vac

On Battery:

  • 200-230Vac +/-10%  (depending on load)

Output frequency

On Mains: 50Hz( Auto-detect)

On Battery: 50Hz +/-0.1Hz

Battery/Battery charger

Battery(Internal/External)

External

Nominal voltage

12V

Battery capacity (C20)

 1 No. (100 AH - 200 AH)

Battery type

 Flat Plate, Tubular

Charger type

Constant current, Constant Wattage

Charging current

Non-Selectable, Max: 6.5A

Typical recharge time

8-12 hours

Safety/Protection

Protection provided against



Overload on Mains

Overload on battery

Short circuit

Low battery voltage

Warranty Details

Inverter/UPS Warranty 24 Months
Battery Warranty Depends on battery Manufacturer
Warranty Type On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (D*W*H) cm

Not specified

Net Weight (Kg)

Not specified

Environmental Characteristics

Operating temperature

 Not Applicable

Humidity

 Not Applicable
