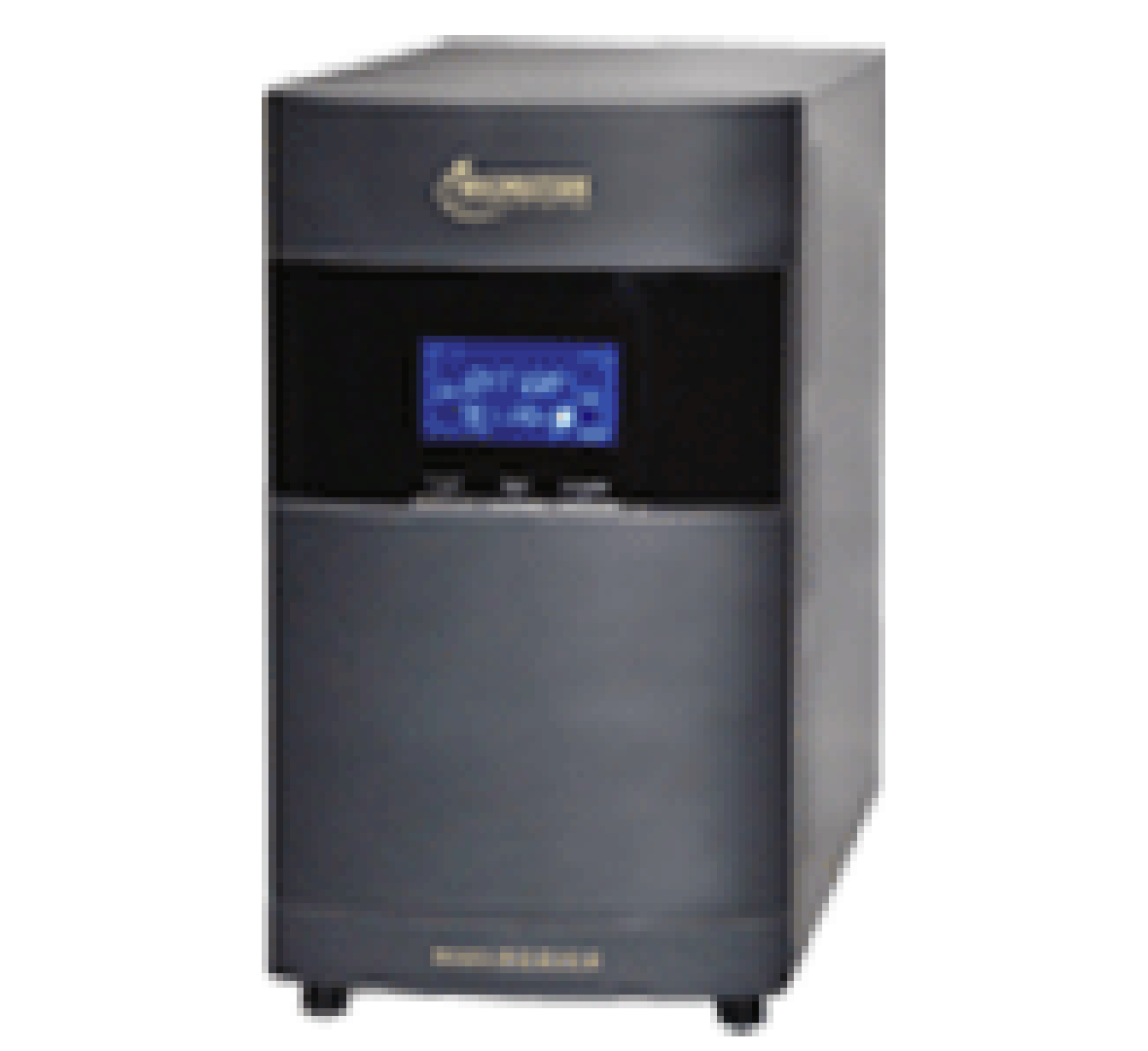

MICROTEK MAX SERIES NM36MX1KK11

MICROTEK MAX SERIES NM36MX1KK11

  • Suitable for: Small computer network, servers, cyber cafe, office
  • Waveform: Sine wave
  • Topology: Online

Item(s) not available at pincode:560001 Change

Delivery Charge: Free
OR Submit Enquiry

Quick links

Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specification

Brand
Phase Type
Topology Online
Inverter Capacity (VA) 1000
Capacity (W) 800
Waveform type Sine wave
Battery (Internal/External) External
Battery Capacity
System Voltage (DC) 36V
Recommended Applications Small computer network, servers, cyber cafe, office
Highlighted Features

Features

UPS-Inverter switch Not Applicable
Home or Away switch Not Applicable
Variable voltage sensitivity setting
Automatic Voltage Regulation (AVR) Yes
Full-time EMI/RFI suppression Yes
Frequency Regulation Yes
Data line surge protection
Separate battery-protected and surge-only outlets
Hot swap battery
Extendable battery back-up Yes
Intelligent battery charging Yes
Automatic battery self-test Yes
Selectable charging current
Generator compatibility Yes
Cold start capability
Audible Alarms Yes
Bypass feature
LED status indicators Yes
LCD Display Yes
Power Management software Yes
Computer interface Yes

Technical Specifications

Input

Input Voltage/Frequency

230 Vac/46-54Hz



Voltage sensitivity for transfer to battery power



118-295V(+/-5V)(<50% load)

160-295V(+/-5V) (>50% load)
Output

Waveform

Sine wave

Output Voltage

208V/220V/230V/240V

Output Frequency (Sync to mains)

46-54Hz/ Fixed

Output frequency (Battery mode)

50Hz(+/-0.2%)

Efficiency

85-92%

Crest Factor

3:1

Overload

30sec @110%, 0.2sec @150%
Battery/Battery charger

Battery(Internal/External)

External

Nominal Voltage

36V

Battery capacity (C20)



Battery type



Charging current

0.7-8A

Option to connect additional batteries

Yes
Safety/Protection

Protection

Voltage regulation

Frequency regulation

Surge, spikes, lightning and other power

disturbance

Short circuit

Warranty Details

Inverter/UPS Warranty
Battery Warranty
Warranty Type

Miscellaneous

Computer interface details

Computer interface details

RS 232, SNMP card slot
Software connectivity

Software connectivity

Information not available
Physical Characteristics

Dimension (W*H*D)

Not Specified

Net Weight (Kgs)

Not Specified
Environmental Characteristics

Operating Temperature

Not Specified

Relative Humidity

Not Specified

Audible Noise

Not Specified

Runtime

Estimated Runtime
