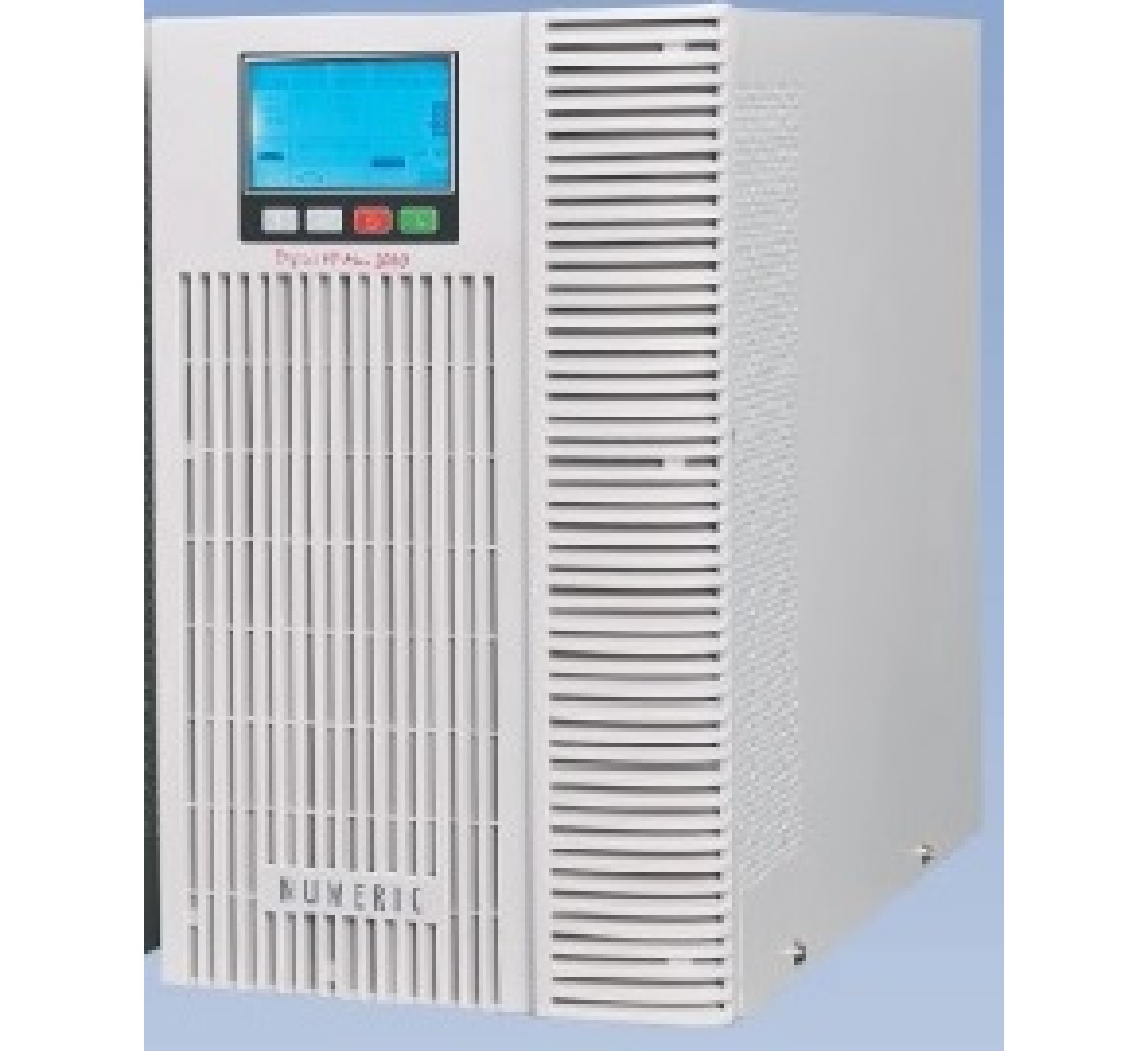

NUMERIC DIGITAL HP Max 2000 WITHOUT ISOLATION TRANSFORMER UPS 2000VA

0 Reviews

|Add to Compare

Servers, networking equipment, sensitive equipment
Waveform: Sine wave
Topology: Online
Warranty: 1 year

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specification

Brand	Numeric
Phase Type	1-Phase Input 1-Phase Output
Topology	Online
Inverter Capacity (VA)	2000
Capacity (W)	1600
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	8 Nos (7 AH - 200 AH)
System Voltage (DC)	96V
Recommended Applications	PCs, Networks, Servers, printers, Communication equipment
Highlighted Features

Features

UPS-Inverter switch	Not Applicable
Home or Away switch	Not Applicable
Variable voltage sensitivity setting
Automatic Voltage Regulation (AVR)	Yes
Full-time EMI/RFI suppression	Yes
Frequency Regulation	Yes
Data line surge protection
Separate battery-protected and surge-only outlets
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test	Yes
Selectable charging current
Generator compatibility	Yes
Cold start capability	Yes
Audible Alarms	Yes
Bypass feature	Manual
LED status indicators
LCD Display	Yes
Power Management software	Yes
Computer interface	Yes

Technical Specifications

Input

Input Voltage/Frequency

230 Vac/45-55Hz

Voltage sensitivity for transfer to battery power

110-300V(<50% load)

160-300V(>50% load)

Output

Waveform	Sine wave
Output Voltage	220V/230V/240V
Output Voltage regulation	+/- 1%
Output Voltage distortion	<= 3% (linear load); <=5% (non-linear load)
Output Frequency (Sync to mains)	45-55Hz
Output frequency (Battery mode)	50Hz(+/-0.2Hz)
Efficiency	>90% (AC-AC)
Crest Factor	3:1
Overload rating	10 sec@ 150%, 1min@130%, 10mins@ 125%

Battery/Battery charger

Battery(Internal/External)	External
Nominal Voltage	36V
Battery capacity (C20)	8 Nos (7 AH - 200 AH)
Battery type	SMF(VRLA), Tubular
Charging current
Option to connect additional batteries	Yes
