Numeric Digital HPH HR 1000

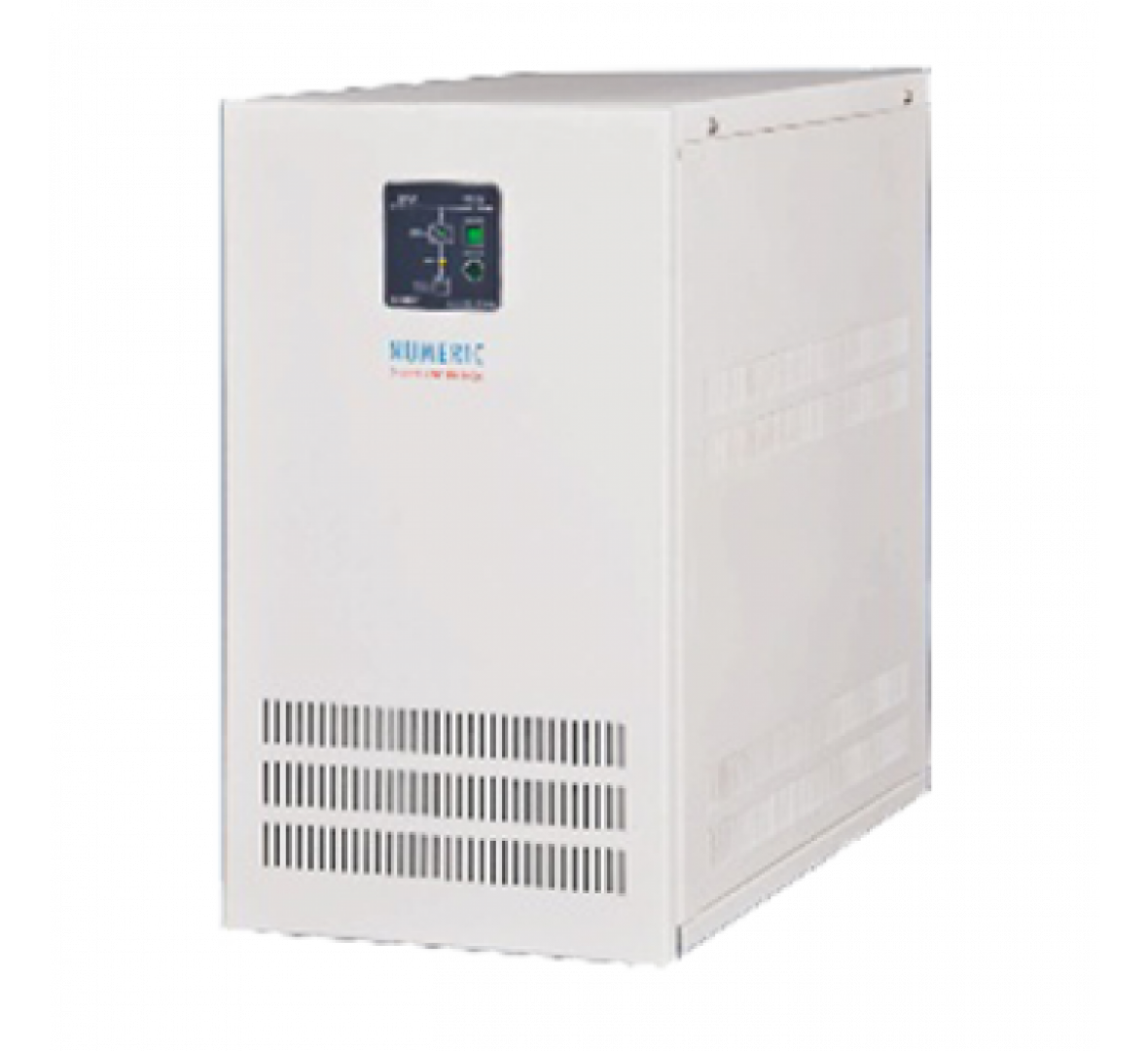

NUMERIC DIGITAL HPH HR 1000VA UPS

  • Sensitive electronics (home theatre etc.), motor loads, PC, TV
  • Waveform: Sine wave
  • Topology: Offline/Standby
  • Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free
OR Submit Enquiry

Why Us?

Be Future Ready: BUY A SOLAR POWER SYSTEM

Save Money + Get Back-up Power

Recommended Solar Kit

Best Price

(incl. delivery, installation & taxes)

₹ 40,481/-

Complete System

EMI Starts from

₹ 3,616p/m

₹ 21,511/-

Inverter + Battery + Rack Only

EMI Starts from

₹ 1,921p/m

Benefits of Going Solar (Estimates only)

Solar Inverter

EXIDE SOLAR HYBRID UPS SHP 850VA (12V)

Capacity: 850VA

Warranty: 24 Months

Specifications

Solar Panels

EXIDE SP12EXIDE150 150W/36-CELL/POLYCRYSTALLINE SOLAR PANEL

Quantity: 2

Brand: Exide

Warranty: 10 years

Total Capacity: 300W

Specifications

Solar Batteries

EXIDE SOLAR 6LMS150 150AH BATTERY

Capacity: 150AH

Quantity: 1 Battery

Warranty: 36 Months

Specifications

Electrical & Mechanical Hardware Electrical & Mechanical Hardware including Mounting structure – Hot dip galvanized iron structure with stainless steel hardware & civil foundation (concrete blocks) / Aluminium structure (with concrete blocks) as suitable AC & DC cables interconnecting solar panels, inverters & batteries Solar Array to Inverter: (Included 10m: Extra length chargeable) Electrical DB to Inverter: (Included 5m: Extra length chargeable) Electrical fuses & other safety protections as applicable Miscellaneous hardware as applicable

Included

  • Long-life
  • Quality Assured

Shadow-free roof area required

~ 26 sqft (2.6 sqm)

Best Price

(incl. delivery, installation & taxes)

₹ 40,481/-

For Complete System

Workmanship warranty: 1yr

EMI Starts from

₹ 3,616p/m

₹ 21,511/-

For Inverter + Battery + Rack Only

EMI Starts from

₹ 1,921p/m

Benefits of Going Solar (Estimates only)

Solar Energy Generated

34

units/mth

Power back-up to Connected Loads available for

2.5 - 6.6

hrs/day

Payback against regular Inverter/Battery System

2.8

yrs

Contribution to Environment in 25yrs

Your solar system will reduce…

11TONSCO2

Equivalent to

Planting trees

0.3ACRES

Shadow-free roof area required

~ 26 sqft (2.6 sqm)

Loads that can be run on solar power

  • Lights
  • Fans
  • TV
  • Computers/Laptops

Specifications

Product Specifications

Brand Numeric
Phase Type 1-Phase Input 1-Phase Output
Topology Offline/Standby
Inverter Capacity (VA) 1000
Capacity (W) 800
Waveform type Sine wave
Battery (Internal/External) External
Battery Capacity 1 No. (65 AH - 150 AH)
System Voltage (DC) 12V
Recommended Applications Sensitive electronics (home theatre etc.), motor loads, PC, TV, Lights & fans
Highlighted Features

Features

UPS-Inverter switch Yes
Home or Away switch Yes
Variable voltage sensitivity setting Not Applicable
Automatic Voltage Regulation (AVR) Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets Not Applicable
Hot swap battery
Extendable battery back-up Yes
Intelligent battery charging Yes
Automatic battery self-test
Selectable charging current Yes
Generator compatibility Yes
Cold start capability Yes
Audible Alarms Yes
Bypass feature
LED status indicators Yes
LCD Display
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation

INVERTER Mode (For Lights & Fans)

UPS Mode (For sensitive electronics)

Input voltage/frequency

230V AC/ 47-53 Hz

Voltage window for "on mains" operation

In INVERTER mode: 120-275Vac

In UPS mode: 185-255Vac

Maximum input voltage without damage

280 Vac

Output

Waveform

Sine wave

Output voltage

On Mains:

  • In INVERTER mode: 120-275Vac (mains voltage is passed to load)
  • In UPS mode: 185-255Vac (mains voltage is passed to load)

On Battery:

  • 190-245Vac (depending on load)

Output frequency

On Mains: 50Hz(Auto-detect)

On Battery: 50Hz +/-0.1Hz

Battery/Battery charger

Internal/External

External

Nominal voltage

12V

Battery capacity (C20)

1 No. (65 AH - 150AH)

Battery type

 Flat Plate, Tubular (Flooded lead acid batteries)

Charger type

5 stage constant current  charging

Charging current

Upto 20A

Typical recharge time



Safety/Protection

Protection provided against



Overload on Mains

Overload on battery

Short circuit

Low battery voltage

Line neutral reverse

Over temperature



Warranty Details

Inverter/UPS Warranty 24 Months
Battery Warranty Depends on battery Manufacturer
Warranty Type On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (D*W*H) cm

42 * 22.5 * 20

Net Weight (Kg)

20.5 Kg(1000VA)

Environmental Characteristics

Operating temperature

0 - 45 deg C

Humidity

0-95%, non-condensing
