Harayana

Maharastra

Telangana

Andhra Pradesh

Karnataka

Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions

Educational Institutions
- Schools
- Universities
Health Institutions
- Hospitals
- Medical College

Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★

3¹/₂ Years to 4¹/₂ Years

Return on Investment

20% to 25%

Contact us

Quantity:

-OR-

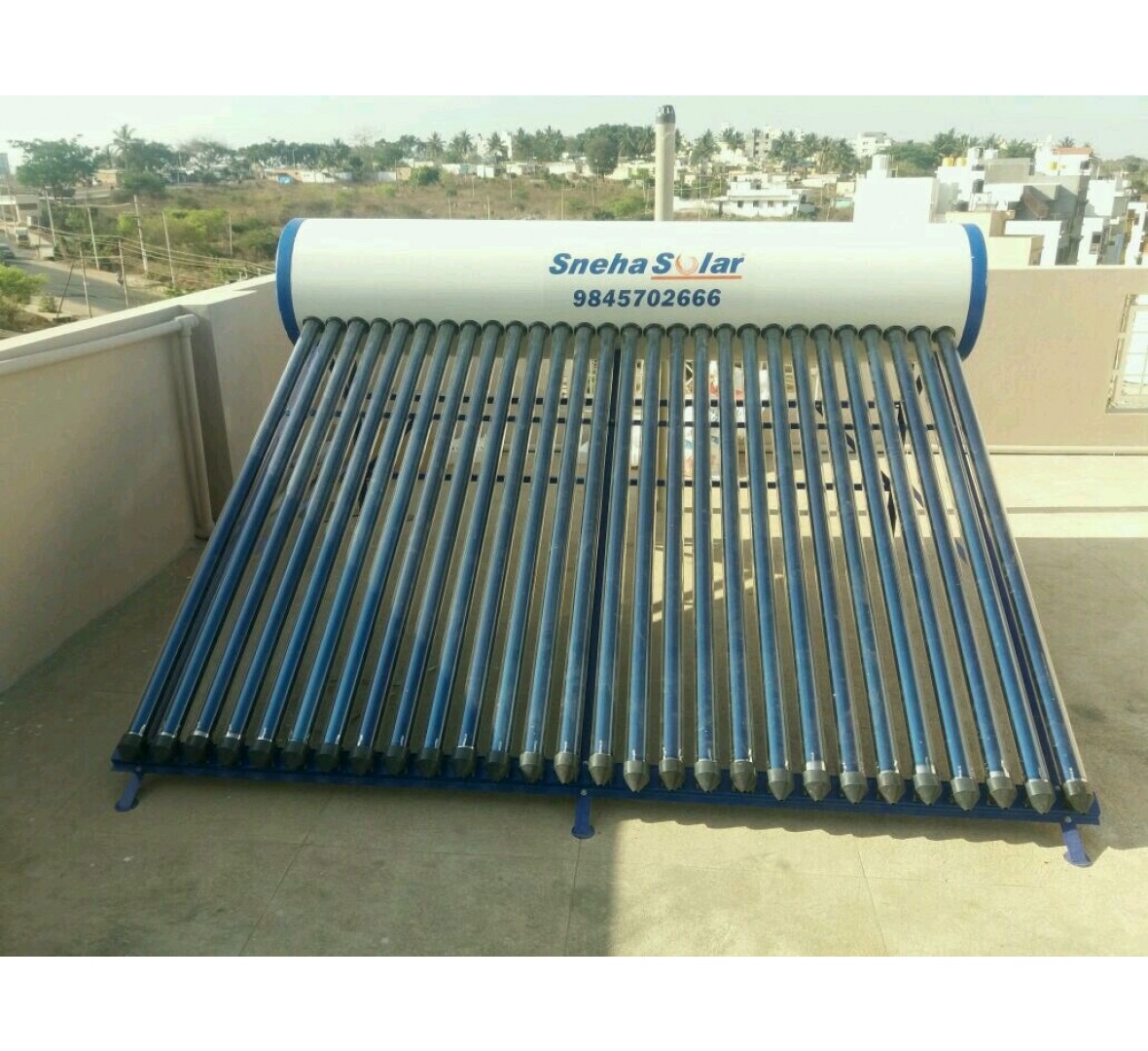

SNEHA SOLAR PLUS 500LPD SOLAR WATER HEATER (GI WITH ENAMEL COATING)

0 Reviews

|Add to Compare

Upto 12 persons, 4 bathrooms
Soft & Hard water applications
Max. water hardness: 1000ppm
Max. pressure: 1 bar
Inner tank: 1.2mm GI with enamel coating

	Offsets 7.5 tonnes of CO2/yr
	Elec. bill savings: 7500 units/yr

Delivery available at 560001 Change

Sold by : SS Solutions

0 Reviews

1-3 business days

Authorized Seller

Delivery Charge: Free

Additional Offers

Free Site Visit Provided Schedule Now
Use GDC3000Copy for additional discount
1 free service in 2 years

Chemical wash of tubes/Collector to remove deposits/scaling

Complete cleaning of hot water storage tank

Free replacement for broken tubes (upto 2 nos) - ETC Systems

Free replacement of Sacrificial Anode - FPC Systems

Free replacement of nuts/bolts/washers (if rusted)

Discounted prices on spares replacement

Exclusions: Tank leakages, faulty plumbing, manual damages
FPC exchange offer upto Rs /-
Complete plumbing support provided at extra cost

Best Offer at your location

Price

Rs 44,155

Rs 76,807

(43% off)

Includes : Installation
Excludes : Hot & cold water plumbing

Delivery Charge: Free

View All Offers

Quick links

Specifications Warranty Details Features In The Box

Sold by : SS Solutions

0 Reviews

1-3 business days

Authorized Seller

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Brand	Sneha Solar
Type of Collector	Evacuated Tube Collector (ETC)
Tank capacity (litres)	500
Type of Application
Maximum water TDS	Upto 1000ppm
Approx. Floor Area required (NS * EW)	2.5m * 4.8m
Est. Carbon savings	Offsets 7.5 tonnes of CO2/yr
Est. Electricity savings	Elec. bill savings: 7500 units/yr

Tank Specifications

Inner tank	GI with enamel coating 1.2mm
Tank orientation	Horizontal
Tube fixing with tank	Direct Coupling
Tank insulation	Hi-density injected PUF insulation
Tank protection	Sacrificial anode not required
Electrical back-up heater	Optional (3KW, with thermostat control) at extra cost
Supporting structure	Mild Steel (powder coated)
Heat Exchanger	No
Expansion Tank Provided	No

Collector Specifications

Number of tubes

Collector area (sq m)

11 X 7

Absorber material/coating

Selective three layer coating (AlN/SS/Cu)

Collector features

Specifications as per BIS standards

Tube material: Borosilicate glass

Tube length: 1800mm

Outer tube diameter: 58mm

Warranty Details

System performance warranty (years)	5
Tank warranty (years)	5
Electrical heater (if provided) (years)	No warranty
Warranty Inclusions/Exclusions	The warranty excludes consumables (sacrificial anode, hose pipe) and tube breakage
Warranty Type	Off-site warranty by Manufacturer

Certifications

Product Certification	MNRE Approved
Manufacturer Certification	ISO 9001:2015

Features

Product Features	Suitable for domestic(Home) applications available in different capacities Glass Enamal Coated on Gi Material MIG Welding for inner tank Superior quality PUF insulation Three Target Selectively Coated Borosilicate
