Items Included	Qty
LUMINOUS 200W/72 POLYCRYSTALLINE SOLAR PV PANEL (24V)	2
LUMINOUS SOLAR RETROFIT SRS 1220, 12V, 20A CHARGE CONTROLLER	1
FLAT ROOF MOUNTING STRUCTURE (GI)	1
DC SOLAR CABLE (10m), 4 sqmm (5m, 2 Nos)	1

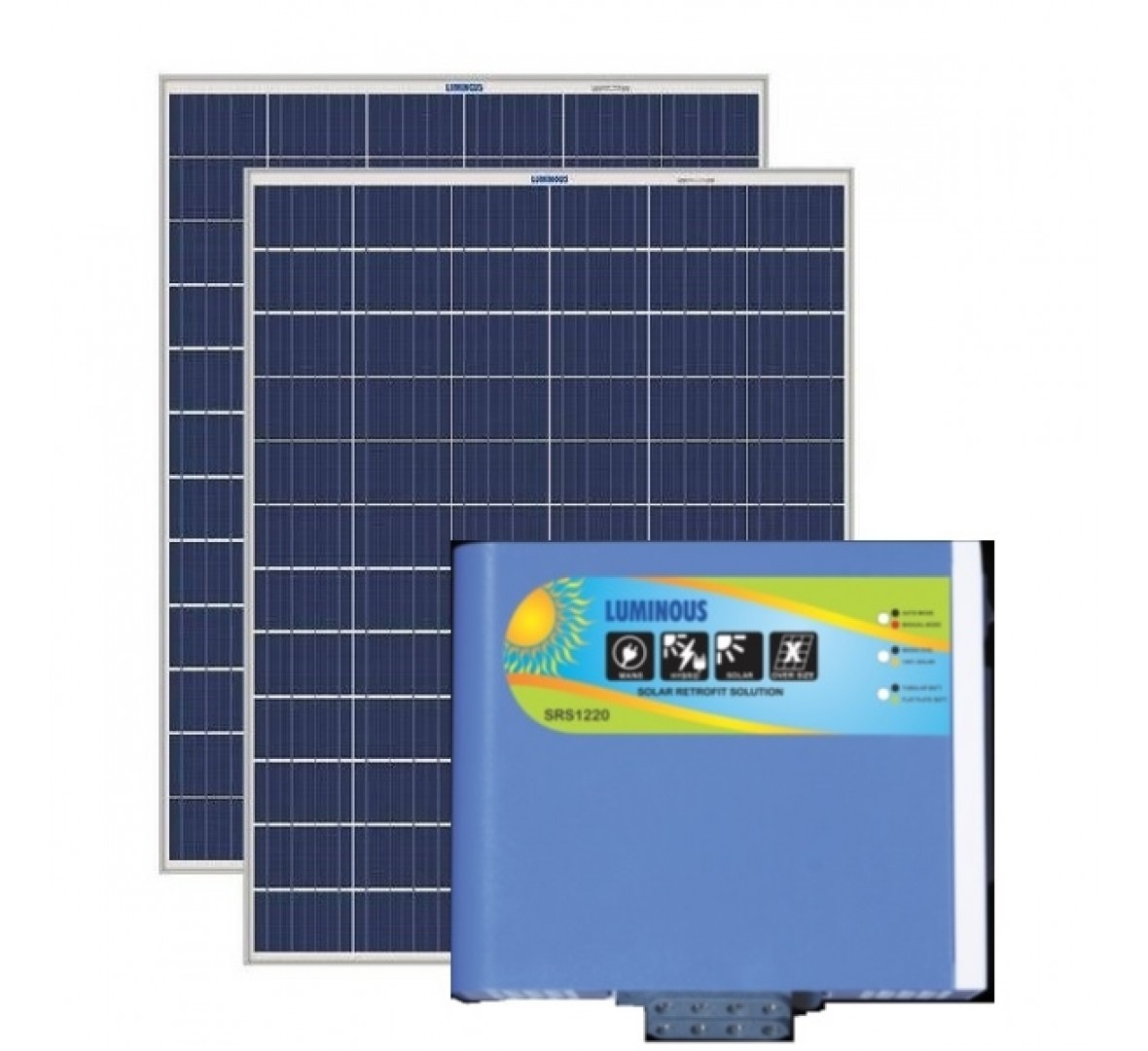

SOLAR RETROFIT KIT (2 X 200Wp SOLAR PANELS + SOLAR CONTROLLER (20A,12V))

Items Included	Qty
LUMINOUS 200W/72 POLYCRYSTALLINE SOLAR PV PANEL (24V)	2
LUMINOUS SOLAR RETROFIT SRS 1220, 12V, 20A CHARGE CONTROLLER	1
FLAT ROOF MOUNTING STRUCTURE (GI)	1
DC SOLAR CABLE (10m), 4 sqmm (5m, 2 Nos)	1

0 Reviews

|Add to Compare

Solar power to existing UPS / battery bank
Solar capacity: 400Wp (2 x 200Wp)
Auto-detect: 12V
Maximum inverter capacity: 1200VA

	Offsets 0.5 tonnes of CO2/yr
	Elec. bill savings: 480 units/yr

Delivery available at 560001 Change

Sold by : TT Solutions

0 Reviews

1-3 business days

Delivery Charge: Free

Best Offer at your location

Price

Rs 30,378

Rs 39,491

(24% off)

EMI Starts from

₹ 2,713p/m

EMI Details

Select Bank

Emi Details For HDFC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 10,346	Rs 31,038
6 Months	13%	Rs 5,257	Rs 31,542
9 Months	14%	Rs 3,575	Rs 32,175
12 Months	14%	Rs 2,728	Rs 32,736

Emi Details For ICICI

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 10,346	Rs 31,038
6 Months	13%	Rs 5,257	Rs 31,542
9 Months	13%	Rs 3,561	Rs 32,049
12 Months	13%	Rs 2,713	Rs 32,556

Emi Details For Axis

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 10,329	Rs 30,987
6 Months	12%	Rs 5,242	Rs 31,452
9 Months	13%	Rs 3,561	Rs 32,049
12 Months	13%	Rs 2,713	Rs 32,556

Emi Details For Kotak

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 10,329	Rs 30,987
6 Months	12%	Rs 5,242	Rs 31,452
9 Months	14%	Rs 3,575	Rs 32,175
12 Months	14%	Rs 2,728	Rs 32,736

Emi Details For IndusInd

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	14%	Rs 10,363	Rs 31,089
6 Months	14%	Rs 5,272	Rs 31,632
9 Months	14%	Rs 3,575	Rs 32,175
12 Months	14%	Rs 2,728	Rs 32,736

Emi Details For Ratnakar Bank

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 10,346	Rs 31,038
6 Months	13%	Rs 5,257	Rs 31,542
9 Months	13%	Rs 3,561	Rs 32,049
12 Months	13%	Rs 2,713	Rs 32,556

Emi Details For Standard Chartered

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 10,346	Rs 31,038
6 Months	13%	Rs 5,257	Rs 31,542
9 Months	14%	Rs 3,575	Rs 32,175
12 Months	14%	Rs 2,728	Rs 32,736

Emi Details For Central Bank of India

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 10,346	Rs 31,038
6 Months	13%	Rs 5,257	Rs 31,542
9 Months	14%	Rs 3,575	Rs 32,175
12 Months	14%	Rs 2,728	Rs 32,736

Emi Details For HSBC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12.5%	Rs 10,338	Rs 31,014
6 Months	12.5%	Rs 5,249	Rs 31,494
9 Months	13.5%	Rs 3,568	Rs 32,112
12 Months	13.5%	Rs 2,720	Rs 32,640

Emi Details For Citi

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 10,346	Rs 31,038
6 Months	13%	Rs 5,257	Rs 31,542
9 Months	15%	Rs 3,590	Rs 32,310
12 Months	15%	Rs 2,742	Rs 32,904

Emi Details For AMEX

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	15%	Rs 10,380	Rs 31,140
6 Months	15%	Rs 5,287	Rs 31,722
9 Months	15%	Rs 3,590	Rs 32,310
12 Months	15%	Rs 2,742	Rs 32,904

Table above shows minimum cart value to avail 3, 6, 9 & 12 months EMI.
Valid only on HDFC, ICICI, Axis, Kotak, IndusInd, SBI, Ratnakar Bank, Standard Chartered, Central Bank of India, HSBC, Citi and AMEX credit cards.
EMI not applicable for debit cards.
The bank charges annual interest rates (as shown above) according to the reducing monthly balance. In the monthly reducing cycle, the principal is reduced with every EMI and interest is calculated on the outstanding balance.

Includes : Installation
Excludes : Civil works/AC-side wiring/Additional cable length

Delivery Charge: Free

Quick links

Kit Specifications Warranty Details In The Box

Sold by : TT Solutions

0 Reviews

1-3 business days

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Kit Specifications

Application	Adds solar power to existing Inverter/Battery Bank Compatible with 12V (inverters with single battery) - All models/makes Reduces the monthly electricity bill as the controller controls the mains supply to the inverter such that Solar power consumption is prioritized Requisite back-up power for loads is available in the batteries Grid power is only used when enough solar power is not available
Total Solar Capacity	400Wp (2*200Wp)
Solar Panel (Wp)	200Wp
Solar Panel (Technology)	Polycrystalline Silicon
Avg. Energy from Solar (estd.)	50 units/month
Charge controller (Voltage)	12V
Charge Controller (Current)	20A
Charge Controller (Type)	PWM
Supported Battery Capacity	100AH - 200AH (12V)
Supported Inverter Capacity (Max.)	1200VA
Panel Mounting Structure	Galvanized Iron
Approx. Area Required	~ 40sqft. (4 sqm.)
Est. Carbon savings	Offsets 0.5 tonnes of CO2/yr
Est. Electricity savings	Elec. bill savings: 480 units/yr

Controller Features

Controller Working Principle

Intelligent Source Selection

Scenario	If Battery > Reserve	If Battery < Reserve
Minimum daytime Loads	Solar powers Loads Excess Solar charges Battery to 100% No MAINS used	Solar charges Battery MAINS powers Loads
Significant daytime Loads	(Solar + Battery) powers Loads Excess Solar charges Battery to 100% No MAINS used	Solar charges Battery MAINS powers Loads
Daytime (significant power cuts)	Solar powers Loads Excess Solar charges Battery	Solar charges Battery Battery powers Loads
Night time (occasional power cuts)	Battery powers Loads No MAINS used	MAINS powers Loads MAINS charges Battery
Night time (significant power cuts)	Battery powers Loads	Battery powers Loads

	Solar/Battery only used
	Solar/Mains used
	Only MAINS used

Features

Efficient battery charging and reduced cycling prolongs battery life
2 modes of Operation:

Auto mode: Prioritizes usage of solar power, minimizes consumption of grid power to charge the battery and power the loads
Manual mode: Over-rides the inverter input and allows for running of heavy loads (e.g. mixer grinder) if sufficient solar power is available

Controller Display

LCD Panel

Controller - Monitoring Indicators

Battery state, Solar state, Mains supply availability, System state

Controller Dimensions

178mmx71mmx159mm

Savings & Benefits

Benefits against Conventional UPS System

For 12V configuration (Retrofit kit connected to Inverters with 1 external battery)

Inverter Capacity (VA)	Max. Load (W)	Estd. daily back-up through solar @ Max. Load (in hrs)	Estd. savings on grid power (Rs/month)	Estd. Cumulative savings - 10yrs (Rs)	Estd. Cumulative savings - 25yrs (Rs)
650	390	3.73	424	56,918	1,73,318
850	510	2.85
1050	630	2.31
1500	900	1.61

Assumptions: Solar insolation: 5.2KWh/sqm (e.g. Bangalore); Grid Traiff: Rs 5.75/unit; Tariff escalation: 3%/yr; solar panel output degradation: 0.5%/yr; Inverter/battery power losses avoided: 1unit/day

Warranty Details

Warranty

1 yr against manufacturing defects

Expected Life

Component

Life*

Solar Panel

Power Warranty :

0-10 yrs: For 90% of rated power

10-25 yrs: For 80% of rated power

*Above figures are indicative only, exact life will depend upon usage and site specific conditions

Safety/Protection

Protection against: Battery reverse polarity, PV reverse, Over current protection, Over voltage protection, Over temperature protection, Battery PV- Swap, PV short circuit

In the Box

In the box	Solar panel: 2 nos. 200Wp Solar controller Solar cable: 10m Flat Roof Mounting Structure Set (GI) - 1 Set. User manual
Installation Requirements	Solar panels to be placed in an area that is shadow-free at least between 9am - 3pm for optimum performance Solar panels are to be installed preferably in south facing direction at an inclination that equals the latitude of the location
