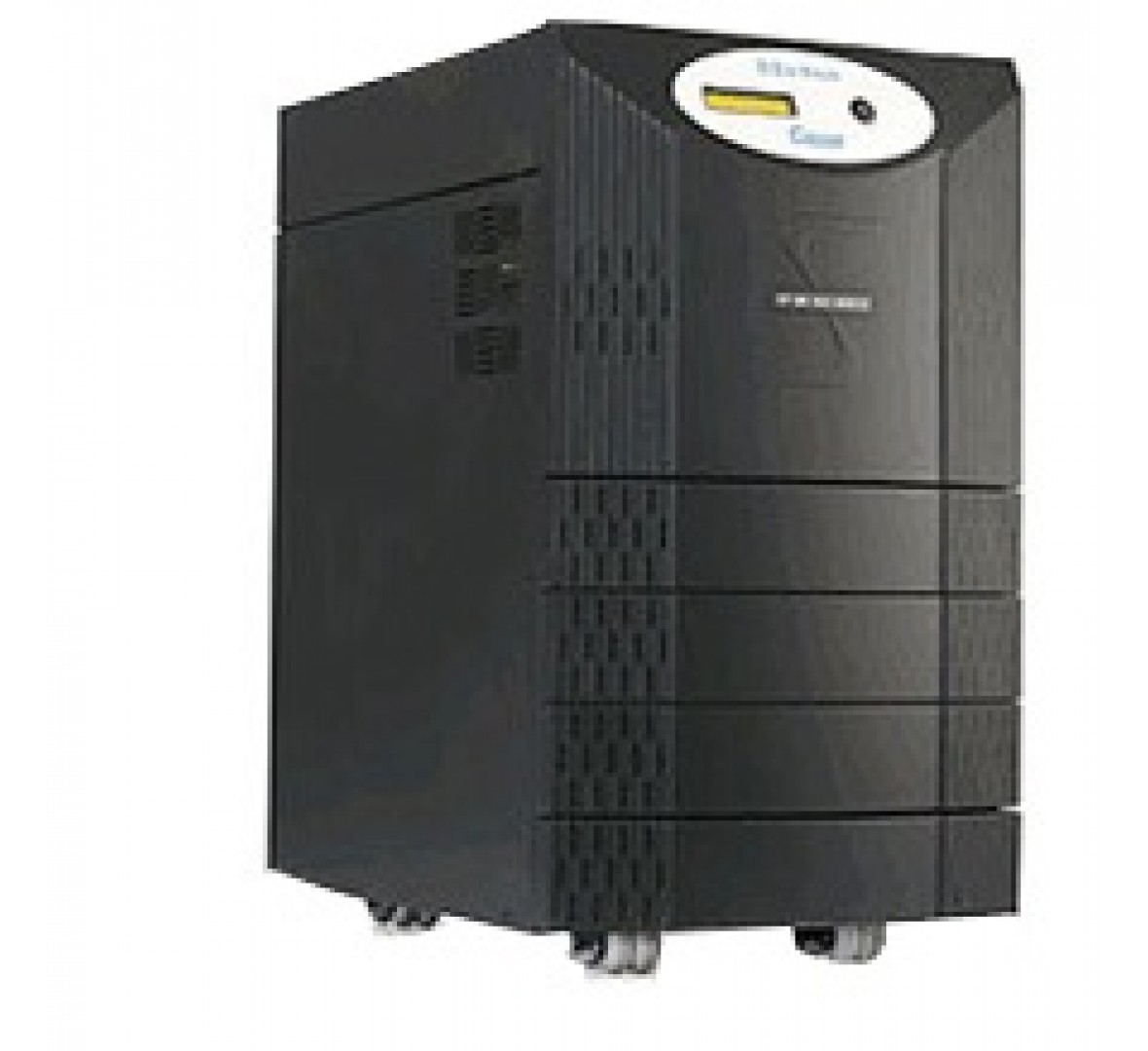

SU-KAM INTELLIQ ONLINE UPS IQ111K

0 Reviews

|Add to Compare

Suitable for: Servers, network equipment, POS, critical equipments
Waveform: Sine wave
Topology: Online
Warranty: 1 year

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specification

Brand
Phase Type	1-Phase Input 1-Phase Output
Topology	Online
Inverter Capacity (VA)	1000
Capacity (W)	700
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	4 Nos (7.2 AH - 200 AH). Recommended to use an external battery charger for battery capacities above 100 AH
System Voltage (DC)	48V
Recommended Applications	workstation/server, network equipment, security systems
Highlighted Features

Features

UPS-Inverter switch	Not Applicable
Home or Away switch	Not Applicable
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Yes
Full-time EMI/RFI suppression	Yes
Frequency Regulation	Yes
Data line surge protection	Yes
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test	Yes
Selectable charging current	Yes
Generator compatibility	Yes
Cold start capability	Yes
Audible Alarms	Yes
Bypass feature	Manual
LED status indicators
LCD Display	Yes
Power Management software	Yes
Computer interface	Yes

Technical Specifications

Input

Input Voltage/Frequency

230 Vac/47-53Hz

Voltage sensitivity for transfer to battery power

170V - 280V (depending upon load)

Output

Waveform	Sine wave
Output Voltage	230V+/-1%
Output Frequency (Sync to mains)	50Hz+/-0.1%
Efficiency	> 85%
Crest Factor	3:1
Output Voltage Regulation	+/- 1%
Output Voltage Distortion	<=3% on linear load
Bypass	Available
Overload	2mins @ 110%

Battery/Battery charger

Battery(Internal/External)	External
Nominal Voltage	48V
Battery capacity (C20)	4 Nos. (7.2 AH -200 Ah)
Battery type	SMF (VRLA), Flat plate, Tubular
Charging current	0.8A - 8A
Option to connect additional batteries	Yes
