Harayana

Maharastra

Telangana

Andhra Pradesh

Karnataka

Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions

Educational Institutions
- Schools
- Universities
Health Institutions
- Hospitals
- Medical College

Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★

3¹/₂ Years to 4¹/₂ Years

Return on Investment

20% to 25%

Contact us

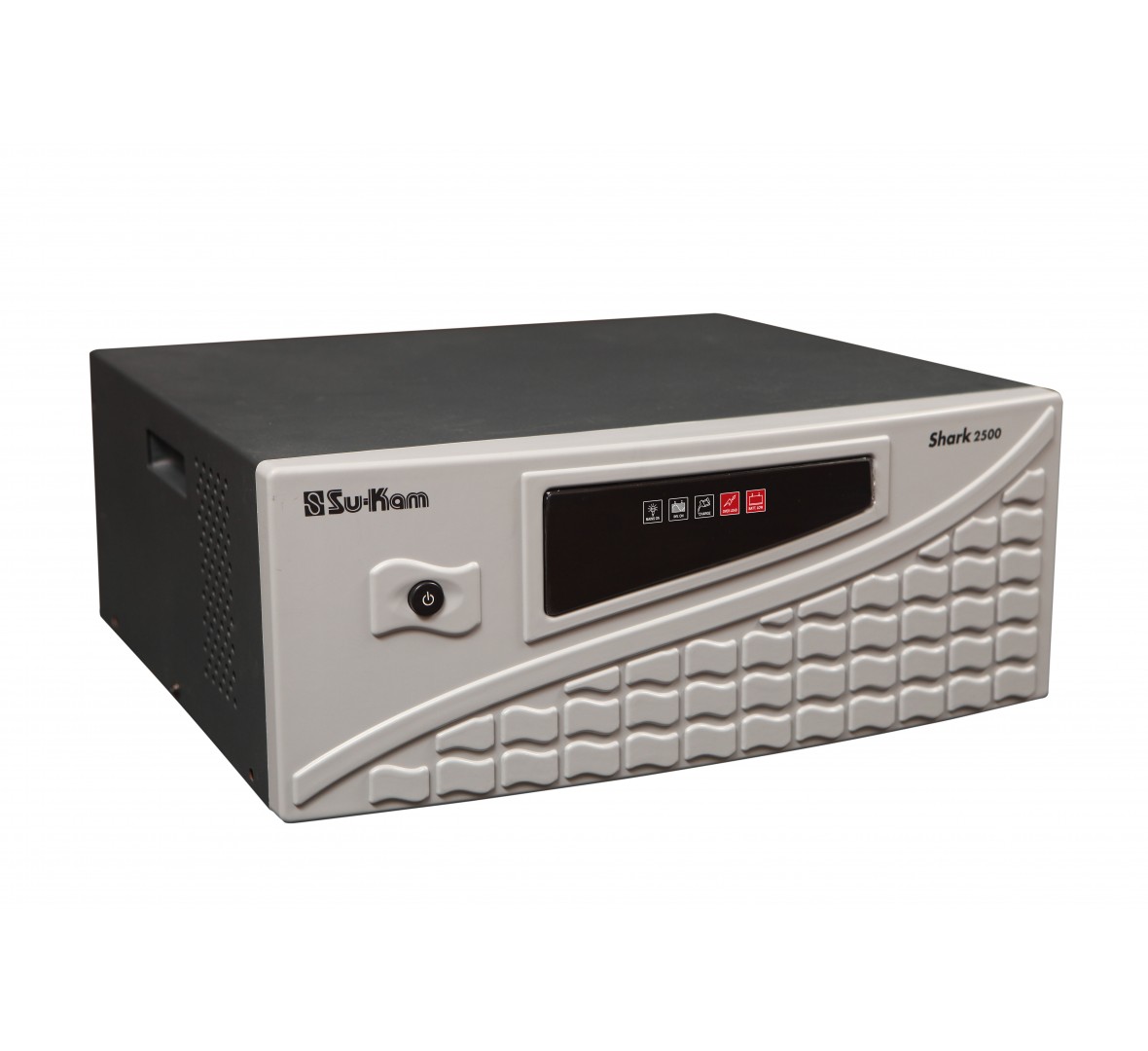

SU-KAM SHARK DIGITAL HOME UPS 2500VA

0 Reviews

|Add to Compare

Suitable for: Lights & Fans
Waveform: Square wave
Topology: Offline/Standby
Warranty: 2 year

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Specifications Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Brand	Su-kam
Phase Type	1-Phase Input 1-Phase Output
Topology	Offline/Standby
Inverter Capacity (VA)	2500
Capacity (W)	2000
Waveform type	Modified Sine wave
Battery (Internal/External)	External
Battery Capacity	100Ah-120Ah(Lead Acid)/150Ah-200Ah(Tubular) of 4 no's
System Voltage (DC)	48V
Recommended Applications	lights, Fan
Highlighted Features

Features

UPS-Inverter switch	Yes
Home or Away switch	Yes
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation	Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current	Yes
Generator compatibility
Cold start capability
Audible Alarms	Yes
Bypass feature
LED status indicators	Yes
LCD Display
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation	W-UPS Mode UPS Mode
Input voltage/frequency	230V AC/ 47-53 Hz
Voltage window for "on mains" operation	In W-UPS mode: 105-290Vac In UPS mode: 185-265Vac
Maximum input voltage without damage	290Vac

Output

Waveform

Square wave

Output voltage

On Mains:

In W-UPS mode: 105-290Vac (mains voltage is passed to load)
In UPS mode: 185-265Vac (mains voltage is passed to load)

On Battery:

200-230+/-25Vac (depending on load)

Output frequency

On Mains: 45-53Hz (Mains frequency passed to load)

On Battery: 50Hz +/-0.1Hz

Battery/Battery charger

Battery(Internal/External)	External
Nominal voltage	48V
Battery capacity (C20)	100Ah-120Ah(Lead Acid)/150Ah-200Ah(Tubular) * 4
Battery type	Lead Acid, Tubular battery
Charger type
Charging current
Typical recharge time
