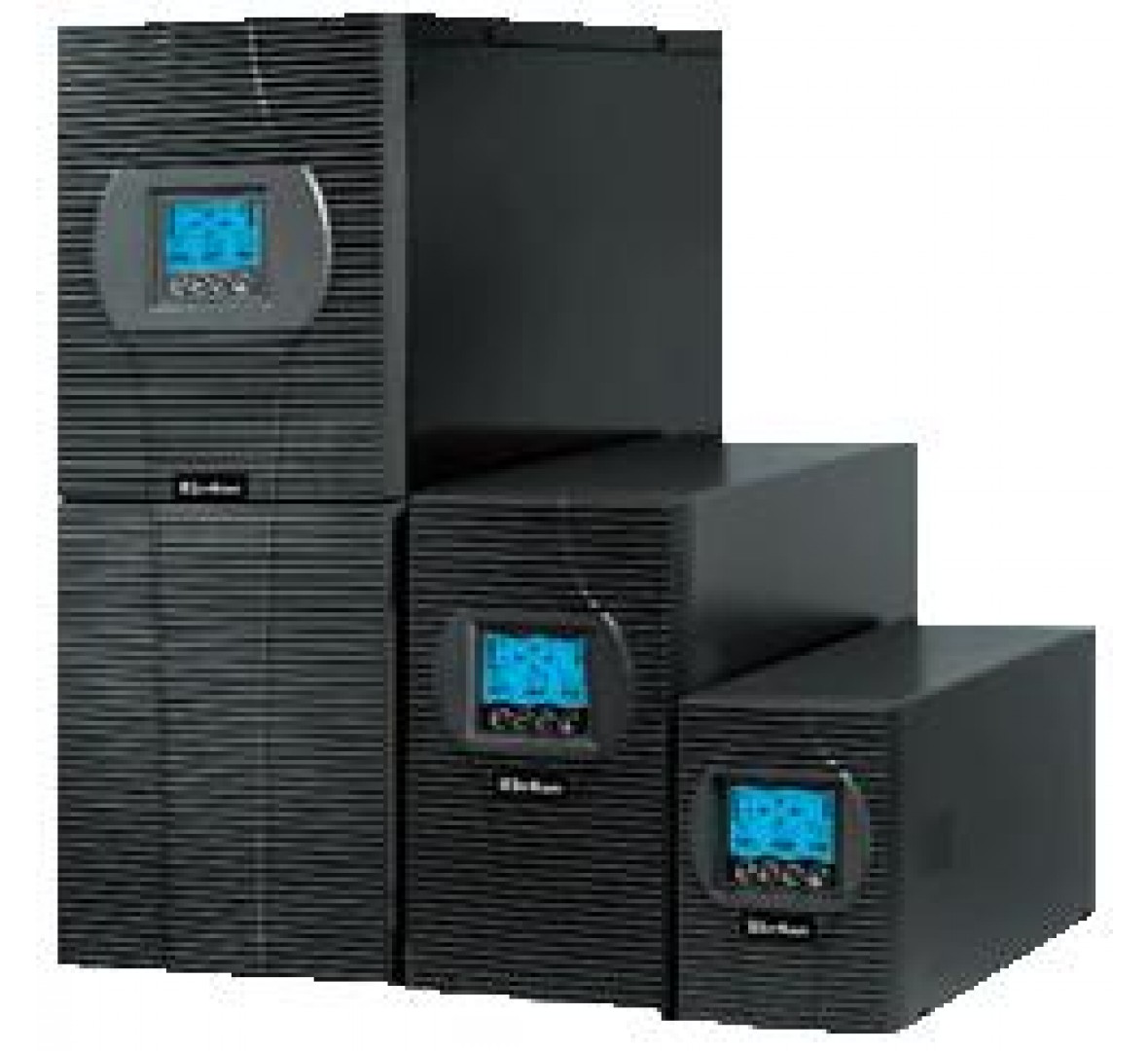

SU-KAM TRUSTY-MX 2000XL

|Add to Compare

Suitable for: Small computer network, servers, cyber cafe, office
Waveform: Sine wave
Topology: Online

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specification

Brand
Phase Type
Topology	Online
Inverter Capacity (VA)	2000
Capacity (W)	1600
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity
System Voltage (DC)	96V
Recommended Applications	Small computer network, servers, cyber cafe, office
Highlighted Features

Features

UPS-Inverter switch	Not Applicable
Home or Away switch	Not Applicable
Variable voltage sensitivity setting
Automatic Voltage Regulation (AVR)	Yes
Full-time EMI/RFI suppression
Frequency Regulation
Data line surge protection	Yes
Separate battery-protected and surge-only outlets
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test	Yes
Selectable charging current
Generator compatibility
Cold start capability
Audible Alarms	Yes
Bypass feature
LED status indicators
LCD Display	Yes
Power Management software	Yes
Computer interface	Yes

Technical Specifications

Input

Input Voltage/Frequency

230 Vac/45-55Hz

Voltage sensitivity for transfer to battery power

110-300V

Output

Waveform	Sine wave
Output Voltage	200V/208V/220V/230V/240V
Output Frequency (Sync to mains)	45-55Hz
Output frequency (Battery mode)	50Hz(+/-0.2Hz)
Efficiency	85-93%
Crest Factor	3:1
Overload	30sec @ 120%, 10sec @ 150%

Battery/Battery charger

Battery(Internal/External)	External
Nominal Voltage	96V
Battery capacity (C20)	Selectable battery capacity
Battery type
Charging current	8A/12A
Option to connect additional batteries	Yes

Safety/Protection

Protection

Voltage regulation

Surge, spikes, lightning and other power

disturbance

Short circuit

Warranty Details

Inverter/UPS Warranty
Battery Warranty
Warranty Type

Miscellaneous

Computer interface details

Computer interface details

USB, SNMP card

Software connectivity

Software connectivity

Winpower

Physical Characteristics

Dimension (WHD)cm	19.2 * 34.7 * 46
Net Weight (Kgs)	Not Specified

Environmental Characteristics

Operating Temperature	0-45 deg C
Relative Humidity	20-90% non condensing
Audible Noise	<50dB

Runtime

Estimated Runtime

Reviews

Write a product review

You're reviewing: SU-KAM TRUSTY-MX 2000XL

	1 star	2 stars	3 stars	4 stars	5 stars
Fit and Finish
Quality
Performance

*Your Name

Detailed Review

Recently Viewed Products

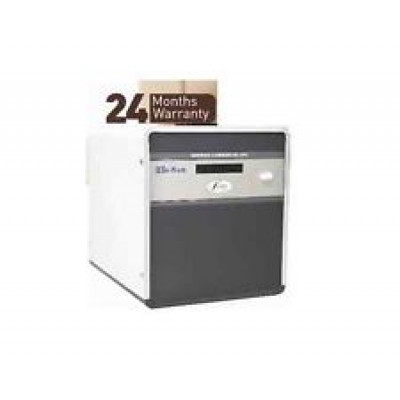

SU-KAM FUSION COMMERCIAL UPS 2.2KVA
