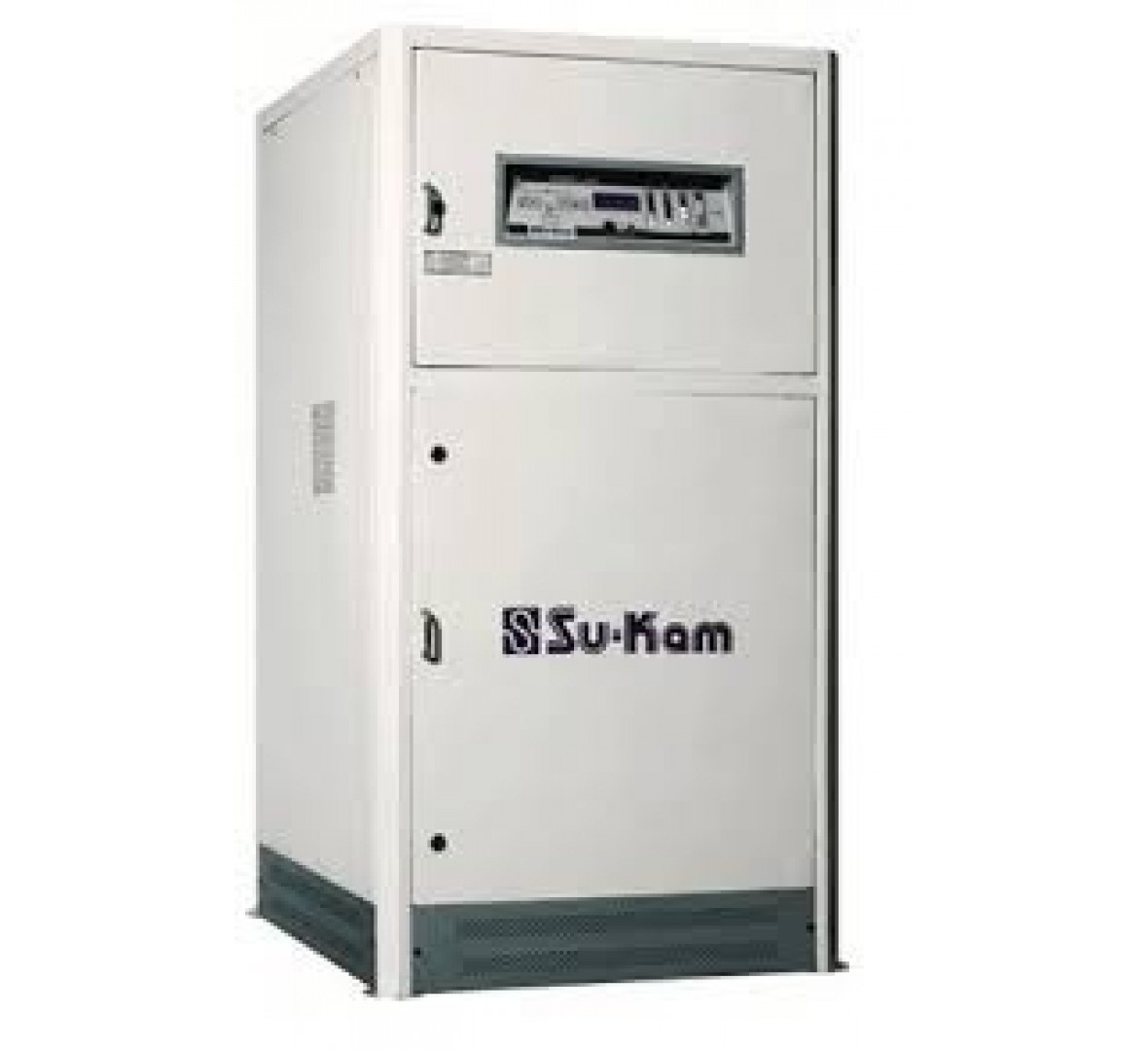

SU-KAM COLOSSAL DSP SINE WAVE INVERTER 5 KVA (48V)

0 Reviews

|Add to Compare

Also: Pumps, Refrigerators, AC
Sine wave
Requires 4 batteries
Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Specifications Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Be Future Ready: BUY A SOLAR POWER SYSTEM

Save Money + Get Back-up Power

Benefits of Going Solar

Save upto 90% on Electricity Bill
Get (2-7) hrs/day Back-up power
3 – 5 yrs payback against Inverter / Battery System

Get your FREE SOLAR QUOTE NOW

Specifications

Product Specifications

Brand	Su-kam
Phase Type	1-Phase Input 1-Phase Output
Topology	Offline/Standby
Inverter Capacity (VA)	5000
Capacity (W)	4000
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	4 Nos. (100 AH - 200 AH)
System Voltage (DC)	48V
Recommended Applications	All heavy duty commercial applications (Air Conditioners, Deep Freezers, Elevators, Pumps etc.) - Viable alternative to Generators
Highlighted Features

Features

UPS-Inverter switch
Home or Away switch
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation	Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current	Yes
Generator compatibility	Yes
Cold start capability	Yes
Audible Alarms	Yes
Bypass feature
LED status indicators
LCD Display	Yes
Power Management software	Yes
Computer interface	Yes

Technical Specifications

Input

Input voltage/frequency	230V AC/ 45-55 Hz
Voltage range	110 - 280Vac
Power factor (charging)	0.85 to 0.95

Output

Waveform	Sinewave
Voltage Regulation	220V +/- 5%
Peak Efficiency	> 85 - 87%
Total Harmonic Distortion	< 3%
Crest factor	> 3:1
Overload handling capacity	101% for 100 sec, 160% for 4 sec

Battery/Battery charger

Battery(Internal/External)	External
Nominal voltage	48V
Battery capacity (C20)	4 Nos. (100 AH - 200 AH)
Battery type	Flat Plate, Tubular, Tall Tubular
Charger type	Fuzzy Logic Controlled charger
Charging current	Selectable: 6A - 20A +/- 1A
Typical recharge time
