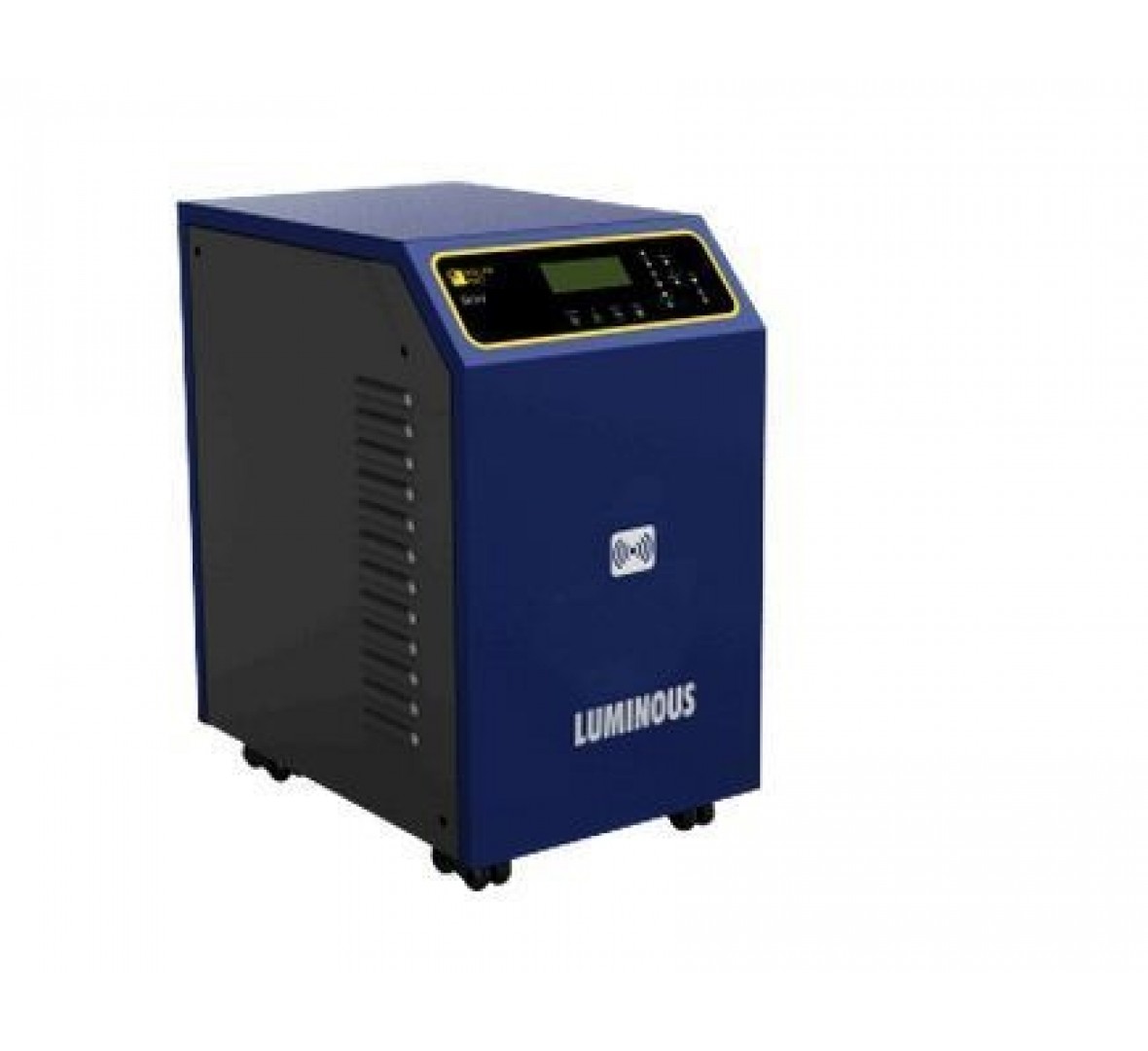

LUMINOUS SOLAR HYBRID NXT PCU 3KW (48V)

0 Reviews

|Add to Compare

Loads: Lights, Fans, TV, PC, Mixie
Sine wave
Requires 4 batteries
Warranty: 2 years

Delivery available at 560001 Change

Sold by : TT Solutions

0 Reviews

1-3 business days

Authorized Seller

View Other Sellers ( 7 )

Delivery Charge: Free

Best Offer at your location

Price

Rs 46,814

Rs 74,445

(38% off)

EMI Starts from

₹ 4,181p/m

EMI Details

Select Bank

Emi Details For HDFC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 15,944	Rs 47,832
6 Months	13%	Rs 8,101	Rs 48,606
9 Months	14%	Rs 5,510	Rs 49,590
12 Months	14%	Rs 4,203	Rs 50,436

Emi Details For ICICI

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 15,944	Rs 47,832
6 Months	13%	Rs 8,101	Rs 48,606
9 Months	13%	Rs 5,487	Rs 49,383
12 Months	13%	Rs 4,181	Rs 50,172

Emi Details For Axis

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 15,918	Rs 47,754
6 Months	12%	Rs 8,078	Rs 48,468
9 Months	13%	Rs 5,487	Rs 49,383
12 Months	13%	Rs 4,181	Rs 50,172

Emi Details For Kotak

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 15,918	Rs 47,754
6 Months	12%	Rs 8,078	Rs 48,468
9 Months	14%	Rs 5,510	Rs 49,590
12 Months	14%	Rs 4,203	Rs 50,436

Emi Details For IndusInd

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	14%	Rs 15,970	Rs 47,910
6 Months	14%	Rs 8,124	Rs 48,744
9 Months	14%	Rs 5,510	Rs 49,590
12 Months	14%	Rs 4,203	Rs 50,436

Emi Details For Ratnakar Bank

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 15,944	Rs 47,832
6 Months	13%	Rs 8,101	Rs 48,606
9 Months	13%	Rs 5,487	Rs 49,383
12 Months	13%	Rs 4,181	Rs 50,172

Emi Details For Standard Chartered

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 15,944	Rs 47,832
6 Months	13%	Rs 8,101	Rs 48,606
9 Months	14%	Rs 5,510	Rs 49,590
12 Months	14%	Rs 4,203	Rs 50,436

Emi Details For Central Bank of India

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 15,944	Rs 47,832
6 Months	13%	Rs 8,101	Rs 48,606
9 Months	14%	Rs 5,510	Rs 49,590
12 Months	14%	Rs 4,203	Rs 50,436

Emi Details For HSBC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12.5%	Rs 15,931	Rs 47,793
6 Months	12.5%	Rs 8,089	Rs 48,534
9 Months	13.5%	Rs 5,499	Rs 49,491
12 Months	13.5%	Rs 4,192	Rs 50,304

Emi Details For Citi

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 15,944	Rs 47,832
6 Months	13%	Rs 8,101	Rs 48,606
9 Months	15%	Rs 5,532	Rs 49,788
12 Months	15%	Rs 4,225	Rs 50,700

Emi Details For AMEX

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	15%	Rs 15,996	Rs 47,988
6 Months	15%	Rs 8,147	Rs 48,882
9 Months	15%	Rs 5,532	Rs 49,788
12 Months	15%	Rs 4,225	Rs 50,700

Table above shows minimum cart value to avail 3, 6, 9 & 12 months EMI.
Valid only on HDFC, ICICI, Axis, Kotak, IndusInd, SBI, Ratnakar Bank, Standard Chartered, Central Bank of India, HSBC, Citi and AMEX credit cards.
EMI not applicable for debit cards.
The bank charges annual interest rates (as shown above) according to the reducing monthly balance. In the monthly reducing cycle, the principal is reduced with every EMI and interest is calculated on the outstanding balance.

Delivery Charge: Free

Quick links

Specifications Features Warranty Details

Sold by : TT Solutions

0 Reviews

1-3 business days

Authorized Seller

View Other Sellers ( 7 )

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Be Future Ready: BUY A SOLAR POWER SYSTEM

Save Money + Get Back-up Power

Benefits of Going Solar

Save upto 90% on Electricity Bill
Get (2-7) hrs/day Back-up power
3 – 5 yrs payback against Inverter / Battery System

Get your FREE SOLAR QUOTE NOW

Specifications

Product Specifications

Brand	Luminous
Power Output	AC
Phase Type	1-Phase Input 1-Phase Output
Topology	Offline/Standby
Inverter Capacity (VA)	3000
Capacity (W)	3000
Max. Input Voltage (V)	165
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	4 Nos. (80 AH - 200 AH)
System Voltage (DC)	48V
Recommended Applications	Sensitive electronics (Home theatre, audio system etc.), Motor loads, TV, PC, Lights & Fans

Solar Specifications

Minimum Solar Capacity (Wp)

900

Maximum Solar Capacity (Wp)

3300

Charge Controller Rating (A)

Charge Controller Type

MPPT

Grid Charging Parameters

Parameter	Feature
Grid Charging Current	Auto-changed based on battery level
Fast Charging	yes, through i-charge switch
Grid Voltage (Low/High cut off limits)	Fixed cut off, not user settable

Other Features

Feature	Yes/No
Inverter Mode (for lights & fans) / UPS Mode (for sensitive equipments)	Yes
User settable Priority (Solar/Mains/Battery OR Solar/Battery/Mains)	Yes
LCD Display	Yes
App for Remote Monitoring/Management	Yes

Features

UPS-Inverter switch	Yes
Home or Away switch	Not Applicable
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression	Not Applicable
Frequency Regulation	Not Applicable
Data line surge protection	Not Applicable
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery	Not applicable
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current	Yes
Generator compatibility
Cold start capability
Audible Alarms	Yes
Bypass feature	Manual
LED status indicators	Yes
LCD Display	Yes
Power Management software
Computer interface	Yes

Technical Specifications

Input

Modes of operation	Inverter Mode (For Pumps, Refrigerators, AC) UPS Mode (For sensitive electronics)
Input voltage/frequency	230V AC/ 50 Hz
Voltage window for "on mains" operation	180-260Vac 100-290Vac
Voltage window for "on solar array" operation	60-130Vac
Maximum input voltage without damage	300Vac

Output

Waveform

Sine wave

Output voltage

On Mains:

Inverter Mode : 180-260Vac (mains voltage is passed to load)
UPS mode : 100-290Vac

On Battery:

230Vac (depending on load)

Output frequency

On Mains: 50Hz (Auto-detect)

On Battery: 50Hz +/-2Hz

Battery/Battery charger

Internal/External	External
Nominal voltage	48V
Battery capacity (C20)	4 Nos. (80 AH - 200 AH)
Battery type	Tubular, Flat Plate, SMF (VRLA)
Charger type	MPPT
Charging current	Auto-Selectable, Max: 60A
Typical recharge time	10-12 hours

Safety/Protection

Under/Over voltage protection for input, output, battery and array
Reverse polarity protection for array and battery
Protection for output overload
Short circuit and over temperature
MCB & amp;Surge protection at Grid/DG input, battery, array bath and PCU O/P

Warranty Details

Inverter/UPS Warranty	24 Months
Battery Warranty	Depends on battery Manufacturer
Warranty Type	On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (DWH) cm	30cm50.4cm51.5cm
Net Weight (Kg)	50kg

Environmental Characteristics

Operating temperature	0 - 50 deg C
Humidity	0-95%, non-condensing

Reviews

Write a product review

You're reviewing: LUMINOUS SOLAR HYBRID NXT PCU 3KW (48V)

	1 star	2 stars	3 stars	4 stars	5 stars
Performance
Fit and Finish
Quality

*Your Name

Detailed Review

Buy Luminous Solar PCU NXT 3kw online at best prices on Glowship.com

The Luminous Solar PCU NXT 3kw can be used to harness the energy from solar panels and provide it to run household appliances. The capacity of the solar PCU is 3000VA and it can provide power output upto 3000W which means it can power most kinds of appliances other than air conditioners at the home or office. The NXT PCU is in-built with an MPPT type charge controller that enables you to harness higher amount of solar energy compared to a PWM based PCU. This PCU also enables simultaneous charging of batteries through both solar power and grid power. The NXT PCU comes with an additional feature to select the source priority for your loads based on your requirement. If you’re living in high power-cut regions then the source priority can be set as Solar, Grid & Battery (SGB) to ensure the batteries have enough energy that can be used during a grid outage, whereas if the power-cuts are not very frequent, then the priority can be set as Solar, Battery & Grid (SBG) to minimize the usage of grid power.

On the input side, solar panels upto 3300W can be connected to the NXT 3kw PCU and the in-built charge controller has a maximum capacity of 40A. The intelligent charging technology can save upto 12 to 13 units of electricity per day. Based on your power requirements the amount of grid power being used to charge the batteries can be varied (upto a maximum of 24A).

The Luminous NXT 3kW solar PCU is a 48V inverter and needs to be connected to four external batteries in series. This PCU also comes with a LCD display that can be used to set the different parameters and view the performance metrics related to the solar power system. The performance parameters can also be viewed on the Luminous mobile app.

If you are looking to buy a complete solar package, you can get an optimum solar recommendation here
