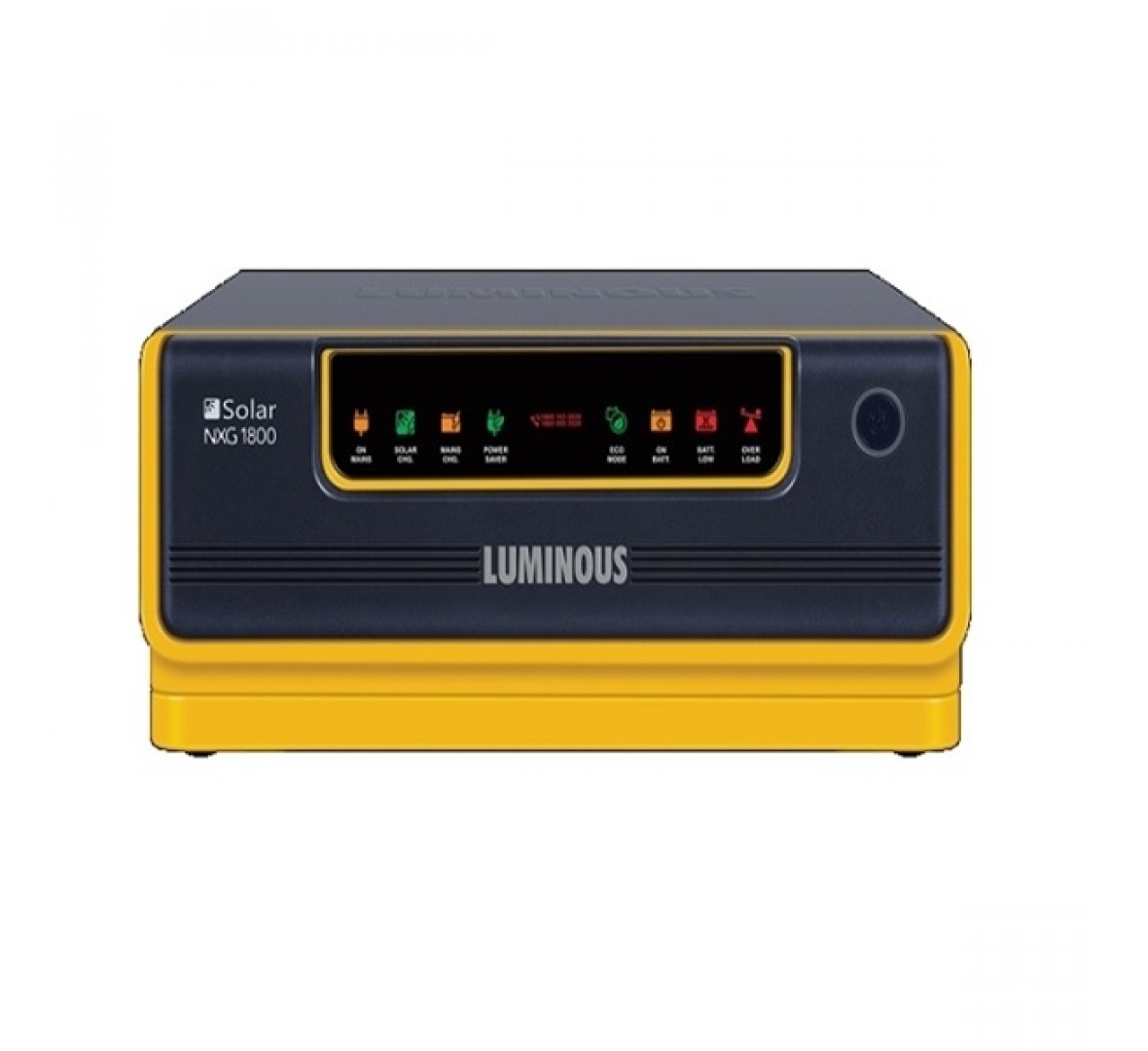

LUMINOUS SOLAR HOME UPS NXG 1800 1500VA (24V)

0 Reviews

|Add to Compare

Loads: Lights, Fans, TV, PC, Mixie
Sine wave
Requires 2 batteries
Warranty: 2 years

Delivery available at 560001 Change

Sold by : TT Solutions

0 Reviews

1-3 business days

Authorized Seller

View Other Sellers ( 8 )

Delivery Charge: Free

Best Offer at your location

Price

Rs 7,744

Rs 11,995

(36% off)

EMI Starts from

₹ 692p/m

EMI Details

Select Bank

Emi Details For HDFC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 2,637	Rs 7,911
6 Months	13%	Rs 1,340	Rs 8,040
9 Months	14%	Rs 911	Rs 8,199
12 Months	14%	Rs 695	Rs 8,340

Emi Details For ICICI

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 2,637	Rs 7,911
6 Months	13%	Rs 1,340	Rs 8,040
9 Months	13%	Rs 908	Rs 8,172
12 Months	13%	Rs 692	Rs 8,304

Emi Details For Axis

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 2,633	Rs 7,899
6 Months	12%	Rs 1,336	Rs 8,016
9 Months	13%	Rs 908	Rs 8,172
12 Months	13%	Rs 692	Rs 8,304

Emi Details For Kotak

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 2,633	Rs 7,899
6 Months	12%	Rs 1,336	Rs 8,016
9 Months	14%	Rs 911	Rs 8,199
12 Months	14%	Rs 695	Rs 8,340

Emi Details For IndusInd

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	14%	Rs 2,642	Rs 7,926
6 Months	14%	Rs 1,344	Rs 8,064
9 Months	14%	Rs 911	Rs 8,199
12 Months	14%	Rs 695	Rs 8,340

Emi Details For Ratnakar Bank

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 2,637	Rs 7,911
6 Months	13%	Rs 1,340	Rs 8,040
9 Months	13%	Rs 908	Rs 8,172
12 Months	13%	Rs 692	Rs 8,304

Emi Details For Standard Chartered

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 2,637	Rs 7,911
6 Months	13%	Rs 1,340	Rs 8,040
9 Months	14%	Rs 911	Rs 8,199
12 Months	14%	Rs 695	Rs 8,340

Emi Details For Central Bank of India

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 2,637	Rs 7,911
6 Months	13%	Rs 1,340	Rs 8,040
9 Months	14%	Rs 911	Rs 8,199
12 Months	14%	Rs 695	Rs 8,340

Emi Details For HSBC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12.5%	Rs 2,635	Rs 7,905
6 Months	12.5%	Rs 1,338	Rs 8,028
9 Months	13.5%	Rs 910	Rs 8,190
12 Months	13.5%	Rs 693	Rs 8,316

Emi Details For Citi

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 2,637	Rs 7,911
6 Months	13%	Rs 1,340	Rs 8,040
9 Months	15%	Rs 915	Rs 8,235
12 Months	15%	Rs 699	Rs 8,388

Emi Details For AMEX

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	15%	Rs 2,646	Rs 7,938
6 Months	15%	Rs 1,348	Rs 8,088
9 Months	15%	Rs 915	Rs 8,235
12 Months	15%	Rs 699	Rs 8,388

Table above shows minimum cart value to avail 3, 6, 9 & 12 months EMI.
Valid only on HDFC, ICICI, Axis, Kotak, IndusInd, SBI, Ratnakar Bank, Standard Chartered, Central Bank of India, HSBC, Citi and AMEX credit cards.
EMI not applicable for debit cards.
The bank charges annual interest rates (as shown above) according to the reducing monthly balance. In the monthly reducing cycle, the principal is reduced with every EMI and interest is calculated on the outstanding balance.

Delivery Charge: Free

Quick links

Specifications Features Warranty Details

Sold by : TT Solutions

0 Reviews

1-3 business days

Authorized Seller

View Other Sellers ( 8 )

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Brand	Luminous
Power Output	AC & DC
Phase Type	1-Phase Input 1-Phase Output
Topology	Offline/Standby
Inverter Capacity (VA)	1500
Capacity (W)	1200
Max. Input Voltage (V)	45
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	2 Nos. (100 AH - 200AH)
System Voltage (DC)	24V
Recommended Applications	Lights, Fans, TV, PC, Mixie etc

Solar Specifications

Minimum Solar Capacity (Wp)

300

Maximum Solar Capacity (Wp)

1300

Charge Controller Rating (A)

Charge Controller Type

PWM

Grid Charging Parameters

Parameter	Feature
Grid Charging Current	Auto-changed based on battery level
Fast Charging	yes, through i-charge switch
Grid Voltage (Low/High cut off limits)	Fixed cut off, not user settable

Other Features

Feature	Yes/No
Inverter Mode (for lights & fans) / UPS Mode (for sensitive equipments)	Yes
User settable Priority (Solar/Mains/Battery OR Solar/Battery/Mains)	Yes
LCD Display	Yes
App for Remote Monitoring/Management	No

Features

UPS-Inverter switch	Yes
Home or Away switch	Not Applicable
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression	Not Applicable
Frequency Regulation	Not Applicable
Data line surge protection	Not Applicable
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery	Not applicable
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current	Not Applicable
Generator compatibility	Yes
Cold start capability	Not Applicable
Audible Alarms	Yes
Bypass feature	Automatic
LED status indicators	Yes
LCD Display
Power Management software	Not Applicable
Computer interface	Not Applicable

Technical Specifications

Input

Modes of operation	Inverter Mode (For Pumps, Refrigerators, AC) UPS Mode (For sensitive electronics)
Input voltage/frequency	230V AC/ 50 Hz
Voltage window for "on mains" operation	180-260Vac 100-290Vac
Voltage window for "on solar array" operation	60-130Vac
Maximum input voltage without damage	300Vac

Output

Waveform

Sine wave

Output voltage

On Mains:

Inverter Mode : 180-260Vac(mains voltage is passed to load)
UPS mode : 100-290Vac

On Battery:

230Vac (depending on load)

On DC mode:

24V 5Amp

On Solar

230Vac

Output frequency

On Mains: 50Hz (Auto-detect)

On Battery: 50Hz +/-2Hz

Battery/Battery charger

Internal/External	External
Nominal voltage	24V
Battery capacity (C20)	2 Nos. (120 AH - 200AH)
Battery type	Tubular, Flat Plate, SMF (VRLA)
Charger type	PWM
Charging current	Non-Selectable, Max: 15A
Typical recharge time	10-12 hours

Safety/Protection

Deep Discharge Protection
Overcharge Protection
Short Circuit Protection
Battery Type selection

Warranty Details

Inverter/UPS Warranty	24 Months
Battery Warranty	Depends on battery Manufacturer
Warranty Type	On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (DWH) cm	37.5cm31.5cm15cm
Net Weight (Kg)	15.66kg

Environmental Characteristics

Operating temperature	0 - 50 deg C
Humidity	0-95%, non-condensing

Reviews

Write a product review

You're reviewing: LUMINOUS SOLAR HOME UPS NXG 1800 1500VA (24V)

	1 star	2 stars	3 stars	4 stars	5 stars
Fit and Finish
Quality
Performance

*Your Name

Detailed Review

Buy Luminous NXG 1800 solar hybrid UPS online at best prices on Glowship.com

The Luminous NXG 1800 solar hybrid inverter can be used to harness the energy from solar panels and provide it to run both DC-powered and AC-powered household appliances. The capacity of the solar inverter is 1500VA and it can provide simultaneous power output for upto 1200W AC appliances and upto 60W (12V) DC appliances. The solar inverter also produces a pure sinewave AC output which ensures safety and noiseless operation of sensitive appliances such as TV, Refrigerator, food processor etc. The NXG 1800 can be operated in two modes – UPS mode (providing higher protection to more sensitive appliances such as computers) and ECO mode .

On the input side, solar panels upto 1300W can be connected to the NXG 1800 solar UPS and the in-built charge controller has a maximum capacity of 40A. The intelligent charging technology can save upto 4 units of electricity per day. The NXG 1800 also comes with a special feature to regulate the grid power being used to charge the batteries. In case of high power cuts, the i–charge switch should be turned ON to enable fast charging of the batteries through grid power in addition to the available solar power (the maximum current that can be drawn from the grid is 15A). To limit the amount of grid power being used, the i-charge switch should be turned OFF (this will limit the maximum current drawn from the grid to 10A)

The NXG 1800 is a 24V inverter and needs to be connected to two external batteries in series. You have the flexibility to connect either flat plate, tubular type or VRLA/Gel type batteries to the inverter as the charging current is adjusted based on the type of battery (through a selectable switch)

If you are looking to buy a complete solar package, then the following best-selling packages are available for purchase on Glowship:

Luminous Solar 1500VA Combo (1500VA + 120AH x 2 + 320W) - This solar package consists of the Luminous NXG 1800 solar hybrid UPS, Luminous 150AH solar battery, 320W solar panels along with necessary electrical and mechanical hardware.

For higher bill reduction, or, more back-up power, you can also explore other pre-engineered solar packages here

In case you would like to purchase solar panels later, you can choose from below solar packages made with the Luminous NXG 1800 solar inverter and different battery capacities along with a trolley.

LUMINOUS SOLAR NXG 1800 1500VA + 2 x LUMINOUS LPTT12100L 100AH + TROLLEY

LUMINOUS SOLAR NXG 1800 1500VA + 2 x LUMINOUS LPTT12150L 150AH + TROLLEY

Glowship provides free delivery and installation on all solar kits along with easy EMI payment options.
