Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions

Educational Institutions
- Schools
- Universities
Health Institutions
- Hospitals
- Medical College

Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★

3¹/₂ Years to 4¹/₂ Years

Return on Investment

20% to 25%

Contact us

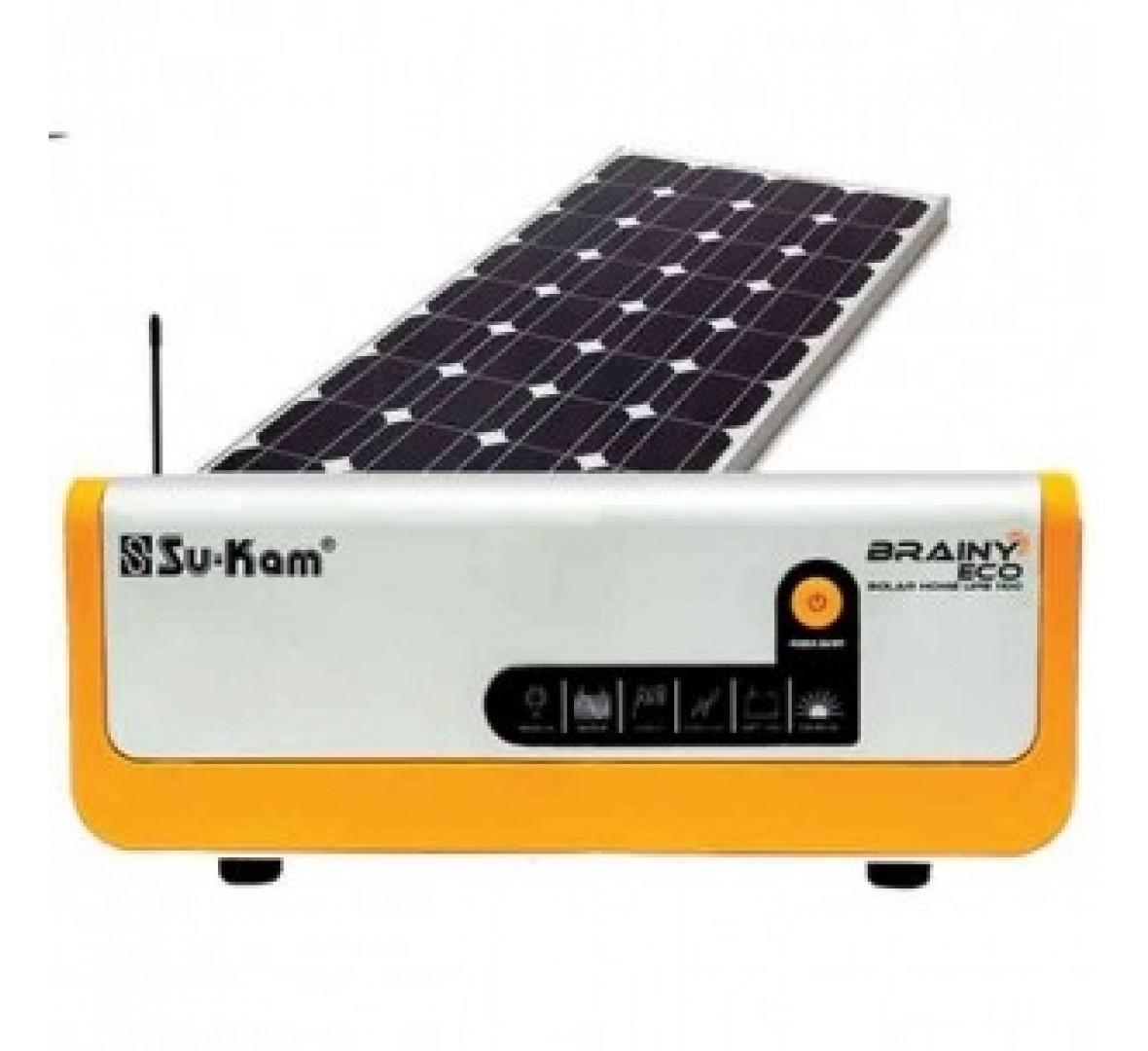

SU-KAM SOLAR HOME UPS ECO BRAINY 1600VA (24V)

0 Reviews

|Add to Compare

Loads: Lights, Fans, TV, PC, Mixie
Sine wave
Requires 2 batteries
Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Specifications Features Warranty Details

Sold by : RSS Technology

Be the first to review this seller

Authorized Seller

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Brand	Su-kam
Power Output	AC
Phase Type	1-Phase Input 1-Phase Output
Topology	Offline/Standby
Inverter Capacity (VA)	1600
Capacity (W)	1280
Max. Input Voltage (V)
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	2 Nos. (70 AH - 300 AH)
System Voltage (DC)	24V
Recommended Applications	Lights, Fans, TV, PC, Mixie etc

Solar Specifications

Minimum Solar Capacity (Wp)

250

Maximum Solar Capacity (Wp)

1000

Charge Controller Rating (A)

Charge Controller Type

MPPT

Grid Charging Parameters

Parameter	Feature
Grid Charging Current	Grid charging can be enabled/disabled from the Switch
Fast Charging	Yes, User selectable

Other Features

Feature	Yes/No
Inverter Mode (for lights & fans) / UPS Mode (for sensitive equipments)	Yes
User settable Priority (Solar/Mains/Battery OR Solar/Battery/Mains)	Yes
LCD Display	Yes
App for Remote Monitoring/Management	No

Features

UPS-Inverter switch	Yes
Home or Away switch	Not Applicable
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression	Not Applicable
Frequency Regulation	Not Applicable
Data line surge protection	Not Applicable
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery	Not applicable
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test	Not Specified
Selectable charging current	Yes
Generator compatibility	Not Applicable
Cold start capability	Not Applicable
Audible Alarms	Yes
Bypass feature	Automatic
LED status indicators
LCD Display	Yes
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation	Inverter Mode (For Lights & Fans) UPS Mode (For sensitive electronics)
Input voltage/frequency	230V AC/ 50 Hz
Voltage window for "on mains" operation	180-260Vac 100-290Vac
Voltage window for "on solar array" operation	60-130Vac
Maximum input voltage without damage	300Vac

Output

Waveform

Sine wave

Output voltage

On Mains:

Inverter Mode : 180-260Vac (mains voltage is passed to load)
UPS mode : 100-290Vac

On Battery:

230Vac (depending on load)

Output frequency

On Mains: 50Hz (Auto-detect)

On Battery: 50Hz +/-2Hz

Battery/Battery charger

Internal/External	External
Nominal voltage	24V
Battery capacity (C20)	2 Nos. (70 AH - 300 AH)
Battery type	Tubular, Flat Plate, SMF (VRLA)
Charger type	MPPT
Charging current	Selectable, Max: 30A
Typical recharge time	10-12 hours
