Harayana

Maharastra

Telangana

Andhra Pradesh

Karnataka

Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions

Educational Institutions
- Schools
- Universities
Health Institutions
- Hospitals
- Medical College

Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★

3¹/₂ Years to 4¹/₂ Years

Return on Investment

20% to 25%

Contact us

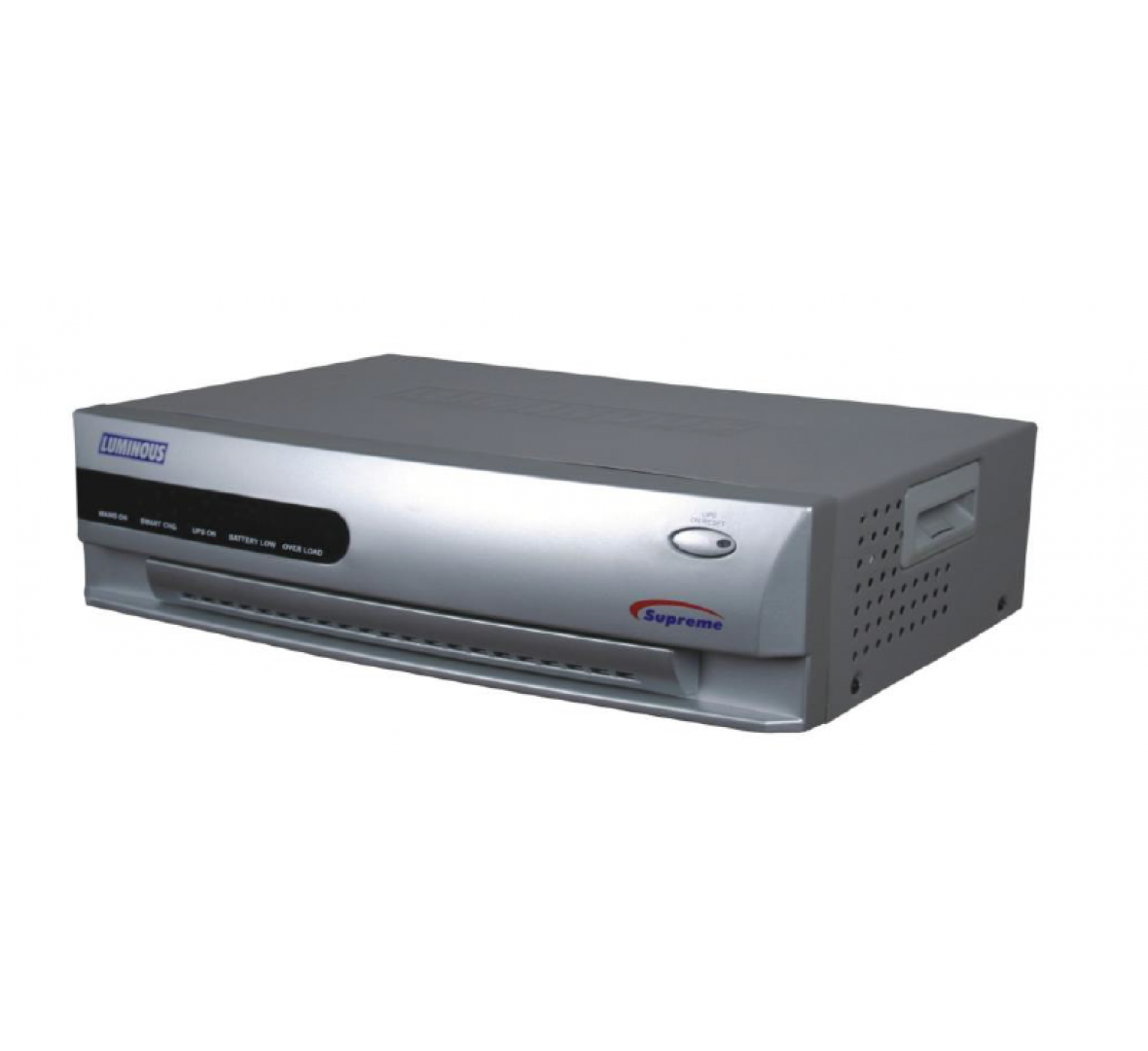

LUMINOUS SUPREME SQUARE WAVE INVERTER 800VA

0 Reviews

|Add to Compare

Loads: Lights, Fans, TV, PC
Square wave
Requires 1 battery
Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Specifications Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Brand	Luminous
Phase Type	1-Phase Input 1-Phase Output
Topology	Offline/Standby
Inverter Capacity (VA)	800
Capacity (W)	640
Waveform type	Modified Sine wave
Battery (Internal/External)	External
Battery Capacity	120Ah - 150Ah of 1 no
System Voltage (DC)	12V
Recommended Applications	Lights, Fans
Highlighted Features

Features

UPS-Inverter switch	Yes
Home or Away switch	Yes
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation	Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current
Generator compatibility
Cold start capability
Audible Alarms	Yes
Bypass feature
LED status indicators	Yes
LCD Display
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation	Regulated Mode Unregulated Mode
Input voltage/frequency	230V AC/ 50 Hz
Voltage window for "on mains" operation	180-265Vac(Regulated mode) 100-300Vac(Unregulated mode)
Maximum input voltage without damage	300 Vac

Output

Waveform

Square wave

Output voltage

On Mains:

Regulated mode : 180-265Vac(mains voltage is passed to load)
Unregulated mode : 100-290Vac

On Battery:

230Vac (depending on load)

Output frequency

On Mains: 50Hz (Auto-detect)

On Battery: 50Hz +/-2Hz

Battery/Battery charger

Internal/External	External
Nominal voltage	12V
Battery capacity (C20)	120Ah - 150Ah
Battery type	Lead Acid
Charger type	ABCC Technology
Charging current
Typical recharge time	10-12 hours
