Harayana

Maharastra

Telangana

Andhra Pradesh

Karnataka

Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions

Educational Institutions
- Schools
- Universities
Health Institutions
- Hospitals
- Medical College

Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★

3¹/₂ Years to 4¹/₂ Years

Return on Investment

20% to 25%

Contact us

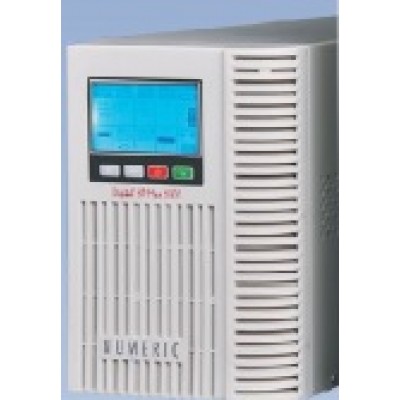

NUMERIC DIGITAL LI SW 1000 UPS 1000VA

0 Reviews

|Add to Compare

Servers & networking equipment, medical equipment
Waveform: Sine wave
Topology: Line Interactive
Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Specifications Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Brand	Numeric
Phase Type	1-Phase Input 1-Phase Output
Topology	Line Interactive
Inverter Capacity (VA)	1000
Capacity (W)	700
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	2 Nos. (7AH - 100AH)
System Voltage (DC)	24V
Recommended Applications	PC’s with advanced Multimedia features,Entry level servers, Scanner, Inkjet / Laser Printers, Fax machines, EPBAX, Point of sale terminals, LAN
Highlighted Features

Features

UPS-Inverter switch	Not Applicable
Home or Away switch	Not Applicable
Variable voltage sensitivity setting
Automatic Voltage Regulation (AVR)	Yes
Full-time EMI/RFI suppression	Yes
Frequency Regulation	Not Applicable
Data line surge protection	Yes
Separate battery-protected and surge-only outlets
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current	Not Applicable
Generator compatibility	Yes
Cold start capability	Yes
Audible Alarms	Yes
Bypass feature	Manual
LED status indicators
LCD Display	Yes
Power Management software	Yes
Computer interface	Yes

Technical Specifications

Input

Input Voltage/Frequency

230 Vac/47-53Hz

Voltage sensitivity for transfer to battery power

Single Setting

155Vac – 305Vac

Output

Waveform	Sine wave
Voltage Regulation (Line mode)	202-253Vac
Voltage Regulation (Battery mode)	230Vac (+/- 5%)
Power Factor	0.7
Efficiency	77%
Transfer time	Typical 6ms

Battery/Battery charger

Internal/External	External
Nominal Voltage	24V
Battery capacity (C20)	2 Nos (24 AH - 100 AH);
Battery type	SMF (VRLA)
Typical recharge time	8 hours for 90% charge
Option to connect additional batteries	Yes

Safety/Protection

Outlets (Battery back-up + Surge protection)	Information not available
Outlets (Surge protection only)
EMI/RFI Filtering	Full time
Utility Input	User resettable circuit breaker
