Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions

Educational Institutions
- Schools
- Universities
Health Institutions
- Hospitals
- Medical College

Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★

3¹/₂ Years to 4¹/₂ Years

Return on Investment

20% to 25%

Contact us

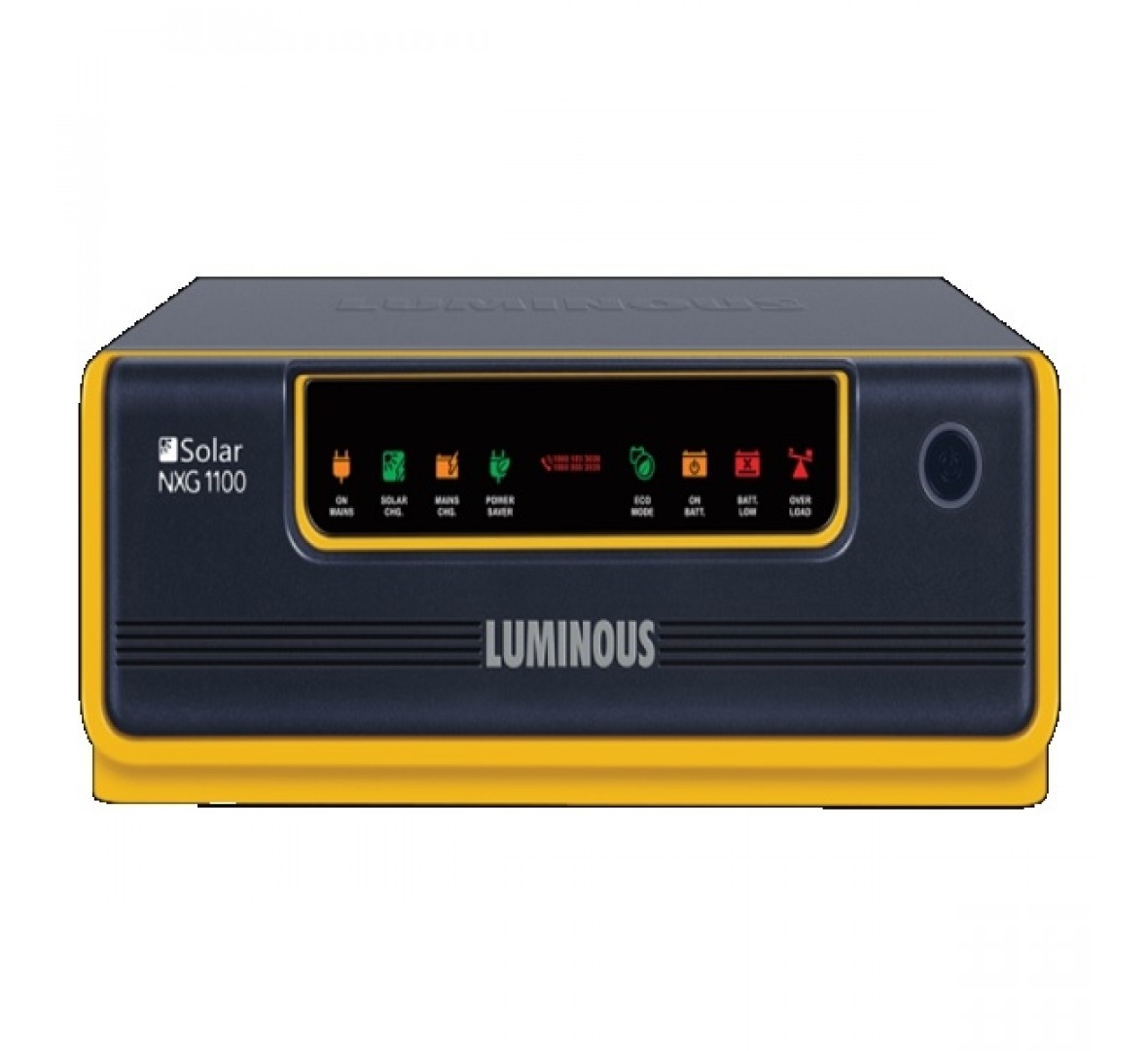

LUMINOUS SOLAR HYBRID UPS NXG 1100 850VA (12V)

1 Reviews

|Add to Compare

Loads: Lights, Fans, TV, PC
Sine wave
Require 1 battery
Warranty: 2 years

Delivery available at 560001 Change

Sold by : TT Solutions

0 Reviews

1-3 business days

Authorized Seller

View Other Sellers ( 8 )

Delivery Charge: Free

Best Offer at your location

Price

Rs 5,520

Rs 9,995

(45% off)

EMI Starts from

₹ 493p/m

EMI Details

Select Bank

Emi Details For HDFC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 1,880	Rs 5,640
6 Months	13%	Rs 955	Rs 5,730
9 Months	14%	Rs 650	Rs 5,850
12 Months	14%	Rs 496	Rs 5,952

Emi Details For ICICI

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 1,880	Rs 5,640
6 Months	13%	Rs 955	Rs 5,730
9 Months	13%	Rs 647	Rs 5,823
12 Months	13%	Rs 493	Rs 5,916

Emi Details For Axis

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 1,877	Rs 5,631
6 Months	12%	Rs 952	Rs 5,712
9 Months	13%	Rs 647	Rs 5,823
12 Months	13%	Rs 493	Rs 5,916

Emi Details For Kotak

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12%	Rs 1,877	Rs 5,631
6 Months	12%	Rs 952	Rs 5,712
9 Months	14%	Rs 650	Rs 5,850
12 Months	14%	Rs 496	Rs 5,952

Emi Details For IndusInd

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	14%	Rs 1,883	Rs 5,649
6 Months	14%	Rs 958	Rs 5,748
9 Months	14%	Rs 650	Rs 5,850
12 Months	14%	Rs 496	Rs 5,952

Emi Details For Ratnakar Bank

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 1,880	Rs 5,640
6 Months	13%	Rs 955	Rs 5,730
9 Months	13%	Rs 647	Rs 5,823
12 Months	13%	Rs 493	Rs 5,916

Emi Details For Standard Chartered

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 1,880	Rs 5,640
6 Months	13%	Rs 955	Rs 5,730
9 Months	14%	Rs 650	Rs 5,850
12 Months	14%	Rs 496	Rs 5,952

Emi Details For Central Bank of India

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 1,880	Rs 5,640
6 Months	13%	Rs 955	Rs 5,730
9 Months	14%	Rs 650	Rs 5,850
12 Months	14%	Rs 496	Rs 5,952

Emi Details For HSBC

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	12.5%	Rs 1,878	Rs 5,634
6 Months	12.5%	Rs 954	Rs 5,724
9 Months	13.5%	Rs 648	Rs 5,832
12 Months	13.5%	Rs 494	Rs 5,928

Emi Details For Citi

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	13%	Rs 1,880	Rs 5,640
6 Months	13%	Rs 955	Rs 5,730
9 Months	15%	Rs 652	Rs 5,868
12 Months	15%	Rs 498	Rs 5,976

Emi Details For AMEX

Tenure	Interest Rate	Monthly Installment	Total Payable
3 Months	15%	Rs 1,886	Rs 5,658
6 Months	15%	Rs 961	Rs 5,766
9 Months	15%	Rs 652	Rs 5,868
12 Months	15%	Rs 498	Rs 5,976

Table above shows minimum cart value to avail 3, 6, 9 & 12 months EMI.
Valid only on HDFC, ICICI, Axis, Kotak, IndusInd, SBI, Ratnakar Bank, Standard Chartered, Central Bank of India, HSBC, Citi and AMEX credit cards.
EMI not applicable for debit cards.
The bank charges annual interest rates (as shown above) according to the reducing monthly balance. In the monthly reducing cycle, the principal is reduced with every EMI and interest is calculated on the outstanding balance.

Delivery Charge: Free

Quick links

Specifications Features Warranty Details

Sold by : TT Solutions

0 Reviews

1-3 business days

Authorized Seller

View Other Sellers ( 8 )

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Brand	Luminous
Power Output	AC & DC
Phase Type	1-Phase Input 1-Phase Output
Topology	Offline/Standby
Inverter Capacity (VA)	850
Capacity (W)	680
Max. Input Voltage (V)	25
Waveform type	Sine wave
Battery (Internal/External)	External
Battery Capacity	1 No (100 AH - 200 AH)
System Voltage (DC)	12V
Recommended Applications	Sensitive electronics (Home theatre, audio system etc.),TV, PC, Lights & Fans

Solar Specifications

Minimum Solar Capacity (Wp)

300

Maximum Solar Capacity (Wp)

1000

Charge Controller Rating (A)

Charge Controller Type

PWM

Grid Charging Parameters

Parameter	Feature
Grid Charging Current	Auto-changed based on battery level
Fast Charging	yes, through i-charge switch
Grid Voltage (Low/High cut off limits)	Fixed cut off, not user settable

Other Features

Feature	Yes/No
Inverter Mode (for lights & fans) / UPS Mode (for sensitive equipments)	Yes
User settable Priority (Solar/Mains/Battery OR Solar/Battery/Mains)	Yes
LCD Display	Yes
App for Remote Monitoring/Management	No

Features

UPS-Inverter switch	Yes
Home or Away switch	Not Applicable
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression	Not Applicable
Frequency Regulation	Not Applicable
Data line surge protection	Not Applicable
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery	Not applicable
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current	Yes
Generator compatibility
Cold start capability
Audible Alarms	Yes
Bypass feature	Automatic
LED status indicators	Yes
LCD Display
Power Management software	Not Applicable
Computer interface	Not Applicable

Technical Specifications

Input

Modes of operation	Inverter Mode (For Lights & Fans) UPS Mode (For sensitive electronics)
Input voltage/frequency	230V AC/ 50 Hz
Voltage window for "on mains" operation	180-265Vac 100-300Vac
Maximum input voltage without damage	300 Vac

Output

Waveform

Sine wave

Output voltage

On Mains:

Regulated mode : 180-265Vac(mains voltage is passed to load)
Unregulated mode : 100-290Vac

On Battery:

230Vac (depending on load)

Output frequency

On Mains: 50Hz (Auto-detect)

On Battery: 50Hz +/-2Hz

Battery/Battery charger

Internal/External	External
Nominal voltage	12V
Battery capacity (C20)	120Ah - 150Ah
Battery type	Tubular, Flat Plate, SMF (VRLA)
Charger type	PWM
Charging current	15A
Typical recharge time	10-12 hours

Safety/Protection

Deep Discharge Protection
Overcharge Protection
Short Circuit Protection
Battery Type selection

Warranty Details

Inverter/UPS Warranty	24 Months
Battery Warranty	Depends on battery Manufacturer
Warranty Type	On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (DWH) cm	37.5cm31.5cm13.5cm
Net Weight (Kg)	11.5kg

Environmental Characteristics

Operating temperature	0 - 40 deg C
Humidity	0-95%, non-condensing

Reviews

Product Review by Hari: Detailed Review: Best discounted Deal I got from Glowship

Write a product review

You're reviewing: LUMINOUS SOLAR HYBRID UPS NXG 1100 850VA (12V)

	1 star	2 stars	3 stars	4 stars	5 stars
Fit and Finish
Quality
Performance

*Your Name

Detailed Review

Buy Luminous NXG 1100 solar hybrid UPS online at best prices on Glowship.com

The Luminous NXG 1100 solar hybrid inverter can be used to harness the energy from solar panels and provide it to run both DC-powered and AC-powered household appliances. The capacity of the solar inverter is 850VA and it can provide simultaneous power output for upto 650W AC appliances and upto 240W DC appliances. The solar inverter also produces a pure sinewave AC output which ensures safety and noiseless operation of sensitive appliances such as TV, Refrigerator etc. The NXG 1100 can be operated in two modes – UPS mode (providing higher protection to more sensitive appliances such as computers) and ECO mode .

On the input side, solar panels upto 1000W can be connected to the NXG 1100 solar UPS and the in-built charge controller has a maximum capacity of 40A. The intelligent charging technology can save upto 3 units of electricity per day. The NXG 1100 also comes with a special feature to regulate the grid power being used to charge the batteries. In case of high power cuts, the i–charge switch should be turned ON to enable fast charging of the batteries through grid power in addition to the available solar power (the maximum current that can be drawn from the grid is 15A). To limit the amount of grid power being used, the i-charge switch should be turned OFF (this will limit the maximum current drawn from the grid to 10A)

The NXG 1100 is a 12V inverter and needs to be connected to one external battery . You have the flexibility to connect either flat plate, tubular type or VRLA/Gel type batteries to the inverter as the charging current is adjusted based on the type of battery (through a selectable switch)

If you are looking to buy a complete solar package, then the following best-selling packages are available for purchase on Glowship:

Luminous Solar 850VA Combo (850VA + 120AH x 1 + 160W) - This solar package consists of the Luminous NXG 1100 solar hybrid UPS, Luminous 120AH solar battery, 160W solar panels along with necessary electrical and mechanical hardware.

Luminous Solar 850VA Combo (850VA + 150AH x 1 + 200W) - This solar package consists of the Luminous NXG 1100 solar hybrid UPS, Luminous 150AH solar battery, 200W solar panels along with necessary electrical and mechanical hardware.

For higher bill reduction, or, more back-up power, you can also explore other pre-engineered solar packages here

In case you would like to purchase solar panels later, you can choose from below solar packages made with the Luminous NXG 1100 solar inverter and different battery capacities along with a trolley.

LUMINOUS SOLAR NXG 1100 850VA + LUMINOUS LPTT12100L 100AH + TROLLEY

LUMINOUS SOLAR NXG 1100 850VA + LUMINOUS LPTT12150L 150AH + TROLLEY

Glowship provides free delivery and installation on all solar kits along with easy EMI payment options.
