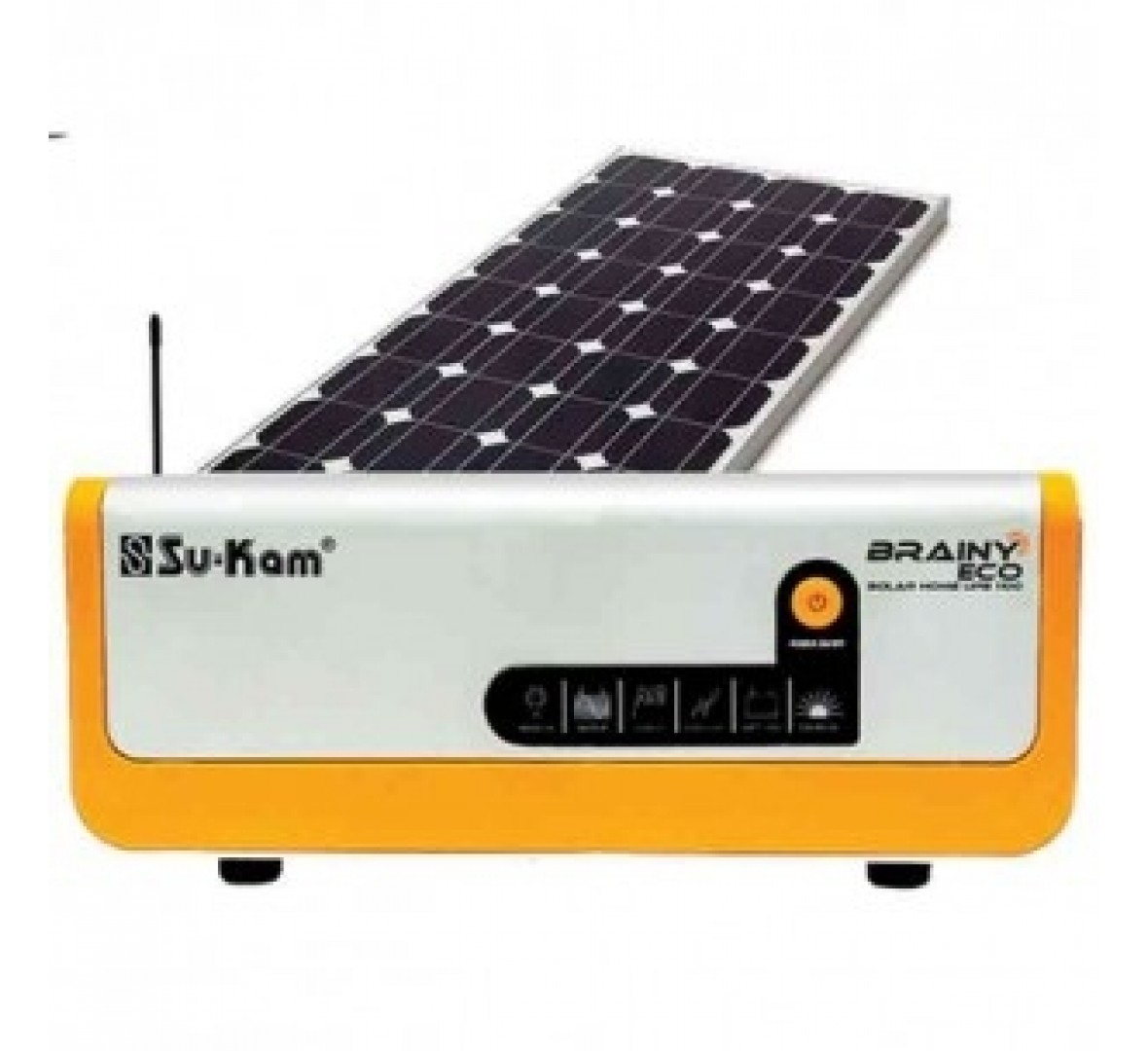

SU-KAM ECO BRAINY 1100VA (12V)

SU-KAM SOLAR HOME UPS ECO BRAINY 1100VA (12V)

  • Loads: Lights, Fans, TV, PC
  • Sine wave
  • Requires 1 battery
  • Warranty: 2 years

Item(s) not available at pincode:560001 Change

Delivery Charge: Free
OR Submit Enquiry
Authorized Seller
Su-kam

Why Us?

Be Future Ready: BUY A SOLAR POWER SYSTEM

Save Money + Get Back-up Power

Recommended Solar Kit

Best Price

(incl. delivery, installation & taxes)

₹ 41,580/-

Complete System

EMI Starts from

₹ 3,714p/m

₹ 22,509/-

Inverter + Battery + Rack Only

EMI Starts from

₹ 2,010p/m

Benefits of Going Solar (Estimates only)

Solar Inverter

EXIDE SOLAR HYBRID UPS SHP 1100VA (12V)

Capacity: 1100VA

Warranty: 24 Months

Specifications

Solar Panels

EXIDE SP12EXIDE150 150W/36-CELL/POLYCRYSTALLINE SOLAR PANEL

Quantity: 2

Brand: Exide

Warranty: 10 years

Total Capacity: 300W

Specifications

Solar Batteries

EXIDE SOLAR 6LMS150 150AH BATTERY

Capacity: 150AH

Quantity: 1 Battery

Warranty: 36 Months

Specifications

Electrical & Mechanical Hardware Electrical & Mechanical Hardware including Mounting structure – Hot dip galvanized iron structure with stainless steel hardware & civil foundation (concrete blocks) / Aluminium structure (with concrete blocks) as suitable AC & DC cables interconnecting solar panels, inverters & batteries Solar Array to Inverter: (Included 10m: Extra length chargeable) Electrical DB to Inverter: (Included 5m: Extra length chargeable) Electrical fuses & other safety protections as applicable Miscellaneous hardware as applicable

Included

  • Long-life
  • Quality Assured

Shadow-free roof area required

~ 26 sqft (2.6 sqm)

Best Price

(incl. delivery, installation & taxes)

₹ 41,580/-

For Complete System

Workmanship warranty: 1yr

EMI Starts from

₹ 3,714p/m

₹ 22,509/-

For Inverter + Battery + Rack Only

EMI Starts from

₹ 2,010p/m

Benefits of Going Solar (Estimates only)

Solar Energy Generated

34

units/mth

Power back-up to Connected Loads available for

1.9 - 5.1

hrs/day

Payback against regular Inverter/Battery System

2.8

yrs

Contribution to Environment in 25yrs

Your solar system will reduce…

11TONSCO2

Equivalent to

Planting trees

0.3ACRES

Shadow-free roof area required

~ 26 sqft (2.6 sqm)

Loads that can be run on solar power

  • Lights
  • Fans
  • TV
  • Computers/Laptops
  • Refrigerator Upto 165ltrs
  • Wet Grinder

Specifications

Product Specifications

Brand Su-kam
Power Output AC
Phase Type 1-Phase Input 1-Phase Output
Topology Offline/Standby
Inverter Capacity (VA) 1100
Capacity (W) 880
Max. Input Voltage (V)
Waveform type Sine wave
Battery (Internal/External) External
Battery Capacity 1 Nos. (45 AH - 300 AH)
System Voltage (DC) 12V
Recommended Applications Sensitive electronics (Home theatre, audio system etc.),TV, PC, Lights & Fans

Solar Specifications

Minimum Solar Capacity (Wp) 80
Maximum Solar Capacity (Wp) 600
Charge Controller Rating (A) 30
Charge Controller Type MPPT
Grid Charging Parameters

 Parameter

 Feature

 Grid Charging Current

Grid charging can be enabled/disabled from the Switch

 Fast Charging

 Yes, User selectable

Other Features

 Feature

 Yes/No

 Inverter Mode (for lights & fans) / UPS Mode (for sensitive equipments)

 Yes

 User settable Priority (Solar/Mains/Battery OR Solar/Battery/Mains)

 Yes

 LCD Display

 Yes

App for Remote Monitoring/Management

No

Features

UPS-Inverter switch Yes
Home or Away switch Not Applicable
Variable voltage sensitivity setting Not Applicable
Automatic Voltage Regulation (AVR) Not Applicable
Full-time EMI/RFI suppression Not Applicable
Frequency Regulation Not Applicable
Data line surge protection Not Applicable
Separate battery-protected and surge-only outlets Not Applicable
Hot swap battery Not applicable
Extendable battery back-up Yes
Intelligent battery charging Yes
Automatic battery self-test Not Specified
Selectable charging current Yes
Generator compatibility Not Applicable
Cold start capability Not Applicable
Audible Alarms Yes
Bypass feature Automatic
LED status indicators
LCD Display Yes
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation

Inverter Mode (For Lights & Fans)

UPS Mode (For sensitive electronics)

Input voltage/frequency

230V AC/ 50 Hz

Voltage window for "on mains" operation

180-260Vac

100-290Vac

Voltage window for "on solar array" operation

60-130Vac

Maximum input voltage without damage

300Vac

Output

Waveform

Sine wave

Output voltage

On Mains:

  • Inverter Mode : 100-290Vac (mains voltage is passed to load)
  • UPS mode : 180-260Vac

On Battery:

  • 230Vac (depending on load)

Output frequency

On Mains: 50Hz (Auto-detect)

On Battery: 50Hz +/-2Hz

Battery/Battery charger

Internal/External

 External

Nominal voltage

 12V

Battery capacity (C20)

 1 Nos. (45 AH - 300 AH)

Battery type

 Tubular, Flat Plate, SMF (VRLA)

Charger type

 MPPT

Charging current

 Selectable, Max: 30A

Typical recharge time

 10-12 hours

Safety/Protection
  • Under/Over voltage protection for input, output, battery
  • Reverse polarity protection for array and battery
  • Protection for output overload
  • Short circuit and over temperature
  • MCB & amp;Surge protection at Grid/DG input, battery, array bath and PCU O/P

Warranty Details

Inverter/UPS Warranty 24 Months
Battery Warranty Depends on battery Manufacturer
Warranty Type On-site warranty by Manufacturer

Miscellaneous

Physical Characteristics

Dimension (D*W*H) cm

  36.8*36.6*18.8cm

Net Weight (Kg)

 11kg

Environmental Characteristics

Operating temperature

0 - 40 deg C

Humidity

0-95%, non-condensing
