Harayana

Maharastra

Telangana

Andhra Pradesh

Karnataka

Pre-approved subsidy ~30%

Available for solar systems to be installed on roofs of below categories of customers:

Residential

All types of buildings

Applicable states

Institutions

Educational Institutions
- Schools
- Universities
Health Institutions
- Hospitals
- Medical College

Type of System :

Grid-connected solar systems (without batteries)

System Sizes :

5kW, 10kW, 15kW, 20kW, 25kW

Features :

Included (remote Monitoring System + O & M for 5years)

★

Payback

★

3¹/₂ Years to 4¹/₂ Years

Return on Investment

20% to 25%

Contact us

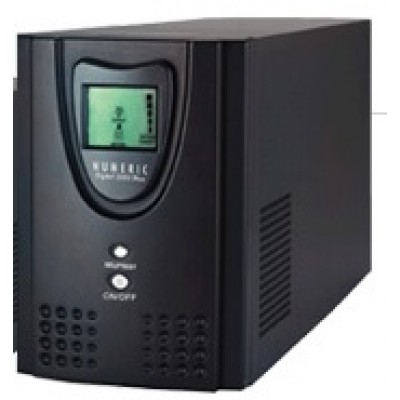

NUMERIC DIGITAL 2000 HPH

0 Reviews

|Add to Compare

Suitable for: Lights, Fans, TV, PC, Sensitive electronics
Waveform: Modified Sinewave
Topology: Offline/Standby

Item(s) not available at pincode:560001 Change

Delivery Charge: Free

OR Submit Enquiry

Quick links

Specifications Features Warranty Details

Why Us?

100% Original Products

Free Delivery & Installation

Manufacturer Warranty

After-sales Support

Specifications

Product Specifications

Brand	Numeric
Phase Type
Topology	Offline/Standby
Inverter Capacity (VA)	2000
Capacity (W)	1200
Waveform type	Modified Sine wave
Battery (Internal/External)	External
Battery Capacity	45Ah - 120Ah of 2no's
System Voltage (DC)	24V
Recommended Applications	Lights, Fans, TV, PC, Sensitive electronics
Highlighted Features

Features

UPS-Inverter switch
Home or Away switch	Yes
Variable voltage sensitivity setting	Not Applicable
Automatic Voltage Regulation (AVR)	Not Applicable
Full-time EMI/RFI suppression
Frequency Regulation	Not Applicable
Data line surge protection
Separate battery-protected and surge-only outlets	Not Applicable
Hot swap battery
Extendable battery back-up	Yes
Intelligent battery charging	Yes
Automatic battery self-test
Selectable charging current
Generator compatibility	Yes
Cold start capability
Audible Alarms	Yes
Bypass feature
LED status indicators	Yes
LCD Display
Power Management software
Computer interface

Technical Specifications

Input

Modes of operation	Single Mode
Input voltage/frequency	220-240V AC/ 50 Hz
Voltage window for "on mains" operation	90-280Vac
Maximum input voltage without damage	280Vac

Output

Waveform

Modified Sinewave

Output voltage

On Mains:

90-280Vac (mains voltage is passed to load)

On Battery:

207-253Vac (depending on load)

Output frequency

On Mains: 50Hz(Auto-detect)

On Battery: 50Hz +/-0.1Hz

Battery/Battery charger

Battery(Internal/External)	External
Nominal voltage	24V
Battery capacity (C20)	2* 45Ah - 120Ah
Battery type	Flooded battery, SMF battery
Charger type	Microprocessor type, 2-stage, regulated charging
Charging current	Non Selectable, Max: 10A
Typical recharge time	Upto 10 hours
